E3S-R

Transparent Object Detection Sensor

E3S-R

Ideal for Detecting Glass Wafers and Other Transparent Objects

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

Compact Horizontal Models with Plastic Housing

Pre-wired Models

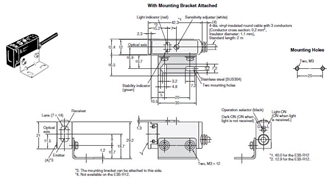

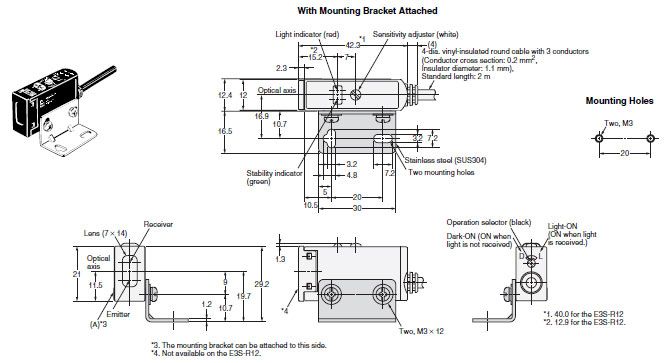

E3S-R11, E3S-R12
E3S-R31

E3S-R Dimensions 4

Standard Connector Models

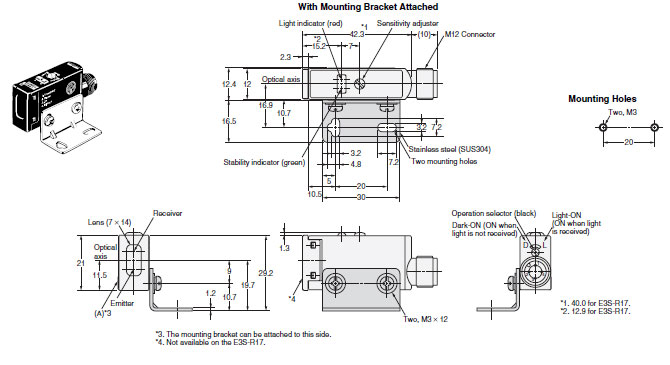

E3S-R16, E3S-R17
E3S-R36

E3S-R Dimensions 5

Compact Vertical Models with Plastic Housing

Pre-wired Models

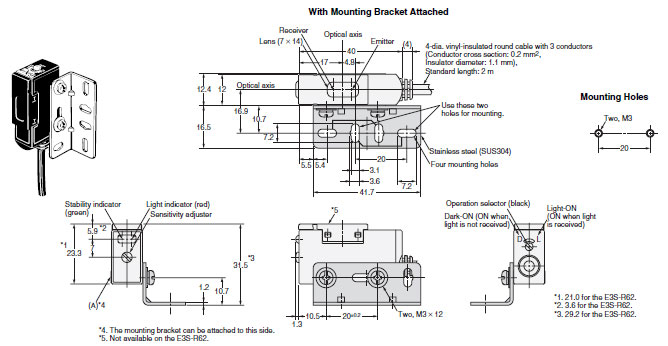

E3S-R61, E3S-R62
E3S-R81

E3S-R Dimensions 7

Standard Connector Models

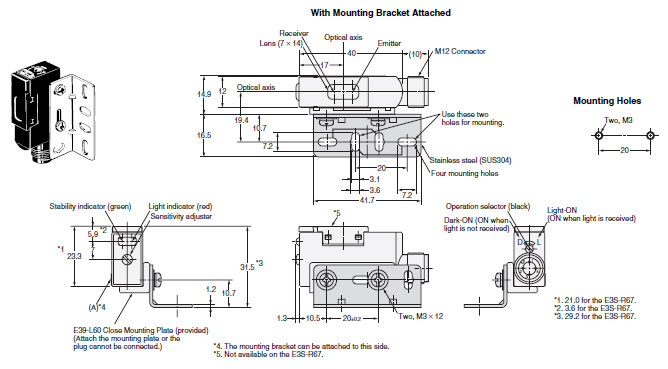

E3S-R66, E3S-R67
E3S-R86

E3S-R Dimensions 8 E3S-R66_Dim

Horizontal Models with Metal Housing

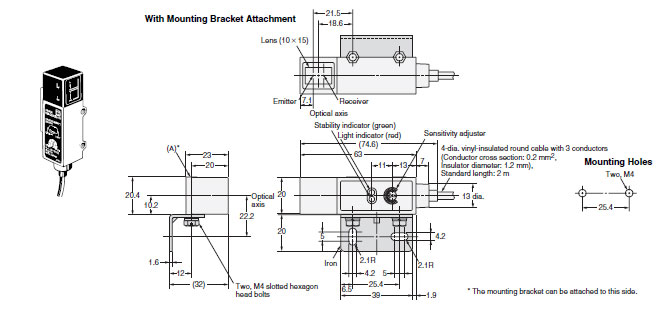

E3S-RS30E4
E3S-R1E4

E3S-R Dimensions 10

Vertical Models with Metal Housing

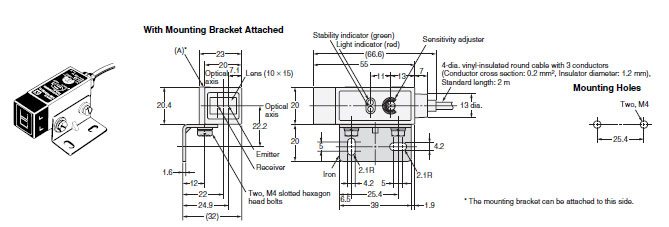

E3S-RS30E42
E3S-R1E42

E3S-R Dimensions 12
