E6C3-A

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

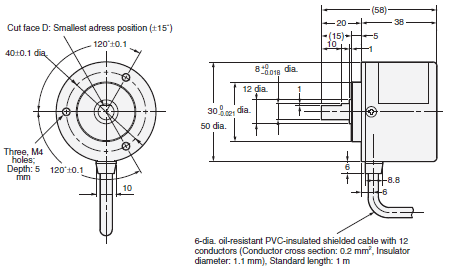

E6C3-A[]5[]
E6C3-AN[]E

Note: The E69-C08B Coupling is sold separately.

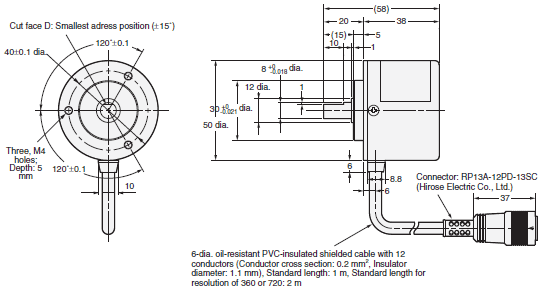

E6C3-AG5C-C

Note: The E69-C08B Coupling is sold separately.

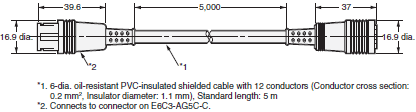

Extension Cable
E69-DF5

Note: 1. The E69-DF5 (5 m) is also available with the following cable lengths: 10 m, 15 m, 20 m, and 98 m.
