H3CR-H

Solid-state Timer

H3CR-H

DIN 48 × 48-mm Power OFF-delay Timer

Related Contents

last update: April 15, 2013

(Unit: mm)

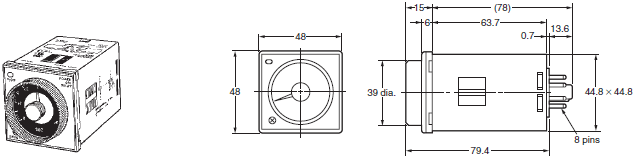

H3CR-H8L
H3CR-H8RL

H3CR-H Dimensions 1

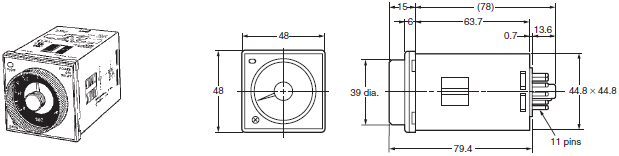

H3CR-HRL

H3CR-H Dimensions 2

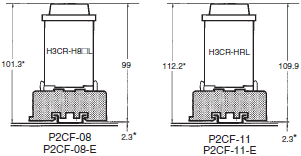

Dimensions with Front Connecting Socket
P2CF-08-[]/P2CF-11-[]

H3CR-H Dimensions 3

Note: There are no restrictions to the mounting direction.
* These dimensions vary with the kind of DIN track (reference value).

Dimensions with Back Connecting Socket
P3G-08/P3GA-11

H3CR-H Dimensions 4

last update: April 15, 2013
