Industrial Automation

CJ1W-ID / IA

CJ-series Input Units

CJ1W-ID / IA

A wide range of CJ series input units are available featuring high-speed input and suitability for various applications. This unit is available for CJ/NJ controllers.

last update: December 19, 2022

(Unit: mm)

8-point/16-point Units (18-point Terminal Blocks)

CJ1W-ID201
CJ1W-ID211
CJ1W-ID212
CJ1W-IA201
CJ1W-IA111

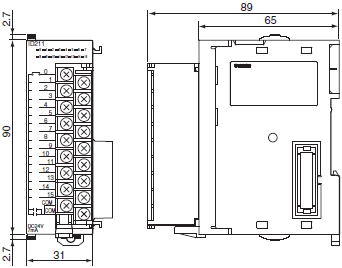

CJ1W-ID / IA Dimensions 1

32-point Units (Input Units)

With Fujitsu / OTAX-compatible Connector (40-pin × 1)

CJ1W-ID231

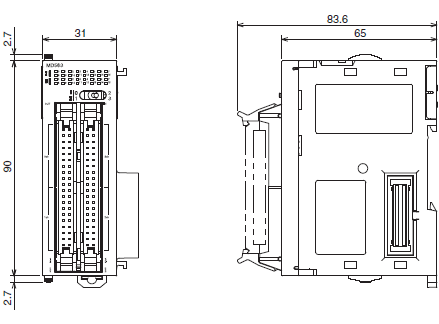

CJ1W-ID / IA Dimensions 3

With MIL Connector (40-pin × 1)

CJ1W-ID232
CJ1W-ID233

CJ1W-ID / IA Dimensions 4

64-point Units (Input Units)

With Fujitsu / OTAX-compatible Connector (40-pin × 2)

CJ1W-ID261

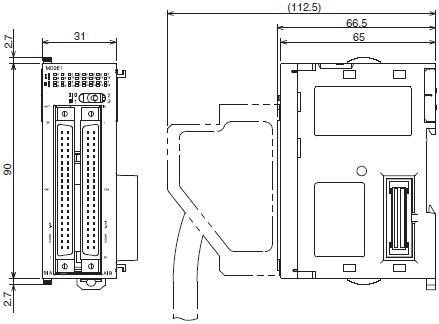

CJ1W-ID / IA Dimensions 6

With MIL Connector (40-pin × 2)

CJ1W-ID262

CJ1W-ID / IA Dimensions 7

last update: December 19, 2022
