E2EF

Discontinued On Mar. 2026

E2EF

Proximity Sensor with All-stainless Housing

E2EF

Metal Head for long-distance Detection that Withstands Harsh Environments Where the Workpiece Can Rub against the Sensor

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: December 5, 2019

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Pre-wired Models

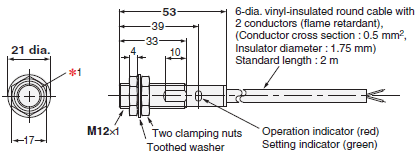

E2EF-X2D1
E2EF-QX2D1

E2EF Dimensions 4

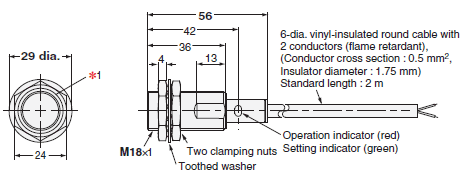

E2EF-X3D1
E2EF-QX3D1

E2EF Dimensions 5

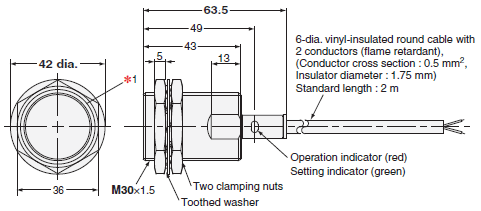

E2EF-X7D1
E2EF-QX7D1

E2EF Dimensions 6

E2EF-X12D1
E2EF-QX12D1

E2EF Dimensions 7

Smartclick Connector Models

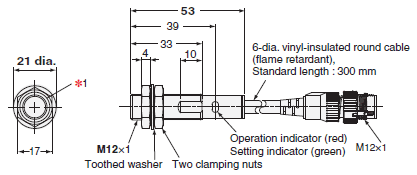

E2EF-X2D1-M1TGJ
E2EF-QX2D1-M1TGJ

E2EF Dimensions 9

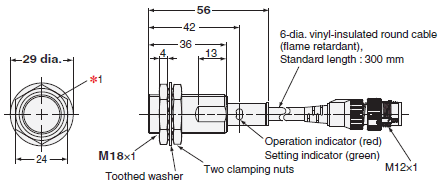

E2EF-X3D1-M1TGJ
E2EF-QX3D1-M1TGJ

E2EF Dimensions 10

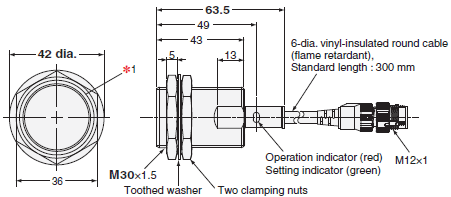

E2EF-X7D1-M1TGJ
E2EF-QX7D1-M1TGJ

E2EF Dimensions 11

E2EF-X12D1-M1TGJ
E2EF-QX12D1-M1TGJ

E2EF Dimensions 12

*1. The E2EF-QX[]D type Clamping nut (optional accessory) is grooved to identify the material (SUS303, with fluororesin coating).
