Industrial Automation
E52 (Exclusive Models)
Temperature Sensor (Exclusive Models)
Thermocouples for Molding Machines, Thermocouples with Crimp Terminals, Surface Temperature Measurement, Room Temperature Measurement, Waterproof Platinum Resistance Thermometers, Corrosion-resistant Models, Pressure-resistant Explosion-proof Models and Double-element Models
Related Contents
Application Solutions
last update: June 1, 2020
(Unit: mm)
Exclusive Models
Thermocouples
Thermocouples for Molding Machines

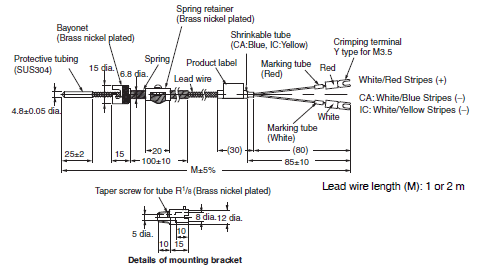

E52-CA2GVY, E52-IC2GVY
Note: The Adapter is included with the Thermocouple.
If it is lost or damaged, you can order a replacement with the following model number.
Adapter: Y92F-S1
If it is lost or damaged, you can order a replacement with the following model number.
Adapter: Y92F-S1
Thermocouples with Crimp Terminal

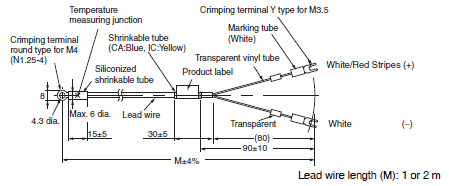

E52-CA1GTY, E52-IC1GTY
Platinum Resistance Thermometers
Platinum Resistance Thermometers for Surface Temperature Measurement

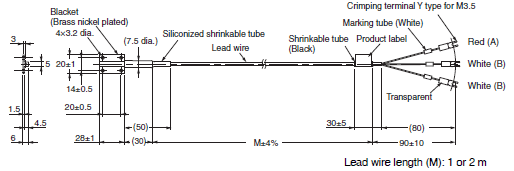

E52-P2GSY
Platinum Resistance Thermometers for Room Temperature Measurement

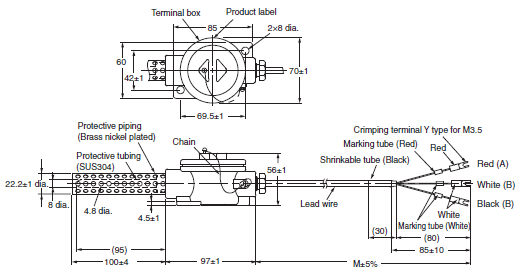

E52-P10GRY
Waterproof Platinum Resistance Thermometers

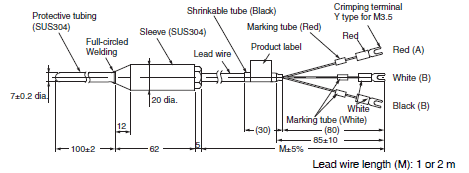

E52-P10GPY
Note: The lead wires are vinyl-covered, and cannot be used underwater.
Use the E52-P5AY-40 if waterproof lead wires are required for use underwater.
Corrosion-resistant Models with Fluororesin-covered Protective Tubing
Thermocouples
Exposed-lead Models

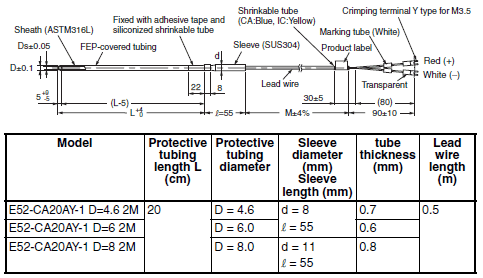

E52-CA20AY-1
Platinum Measurement
Exposed-lead Models

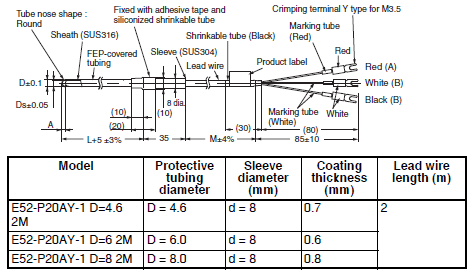

E52-P20AY-1
FEP-molded Models (Completely Waterproof)

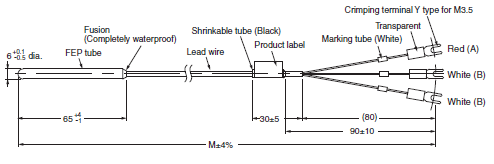

E52-P5AY-40
Pressure-resistant Explosion-proof (IICT6) Models
Thermocouples
Enclosed-terminal Models

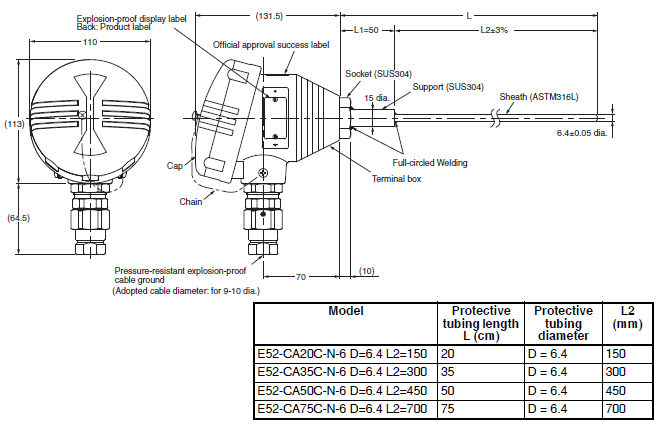

E52-CA[][]C-N-6
Platinum Resistance Thermometers for Surface Temperature Measurement
Enclosed-terminal Models

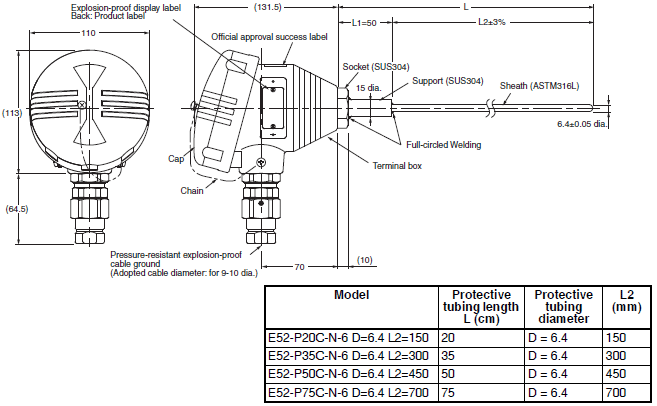

E52-P[][]C-N-6
Double-element Models
Thermocouple
Exposed-lead Models

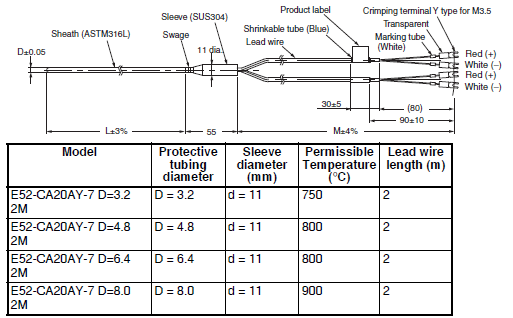

E52-CA20AY-7
Platinum Resistance Thermometers
Exposed-lead Models

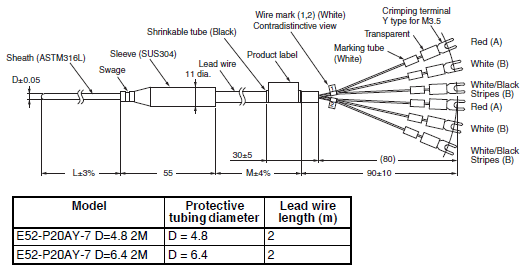

E52-P20AY-7
Enclosed-terminal Models

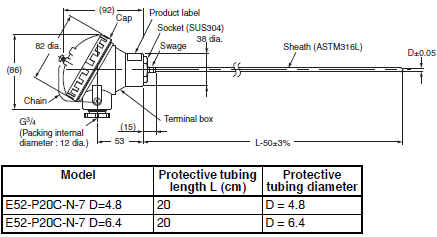

E52-P20C-N-7
Terminal for terminal connection Size: M4
Note: The length L is in centimeters, but “50” is 50 millimeters.
Therefore, for the E52-P20C-N-7: L = 20 (cm), the sheath length L - 50 = 200 - 50 = 150 mm.
Silicone-covered Lead Wires Models
Thermocouples
Exposed-lead Models with Screws
E52-CA1DY-40
Thermocouples with Crimp Terminal

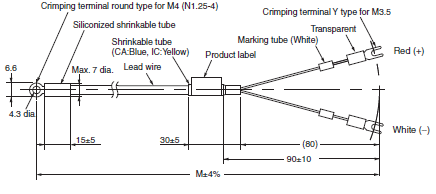

E52-CA1GTY-14
Lead wire length (M): 1 or 2 m
last update: June 1, 2020
