WL Two-circuit Limit Switch/Lineup | OMRON Industrial Automation Indonesia

(Not all combinations are possible. Ask your OMRON representative for details.)

Note: Models are also available with ground terminals.

Actuator			Roller lever R38	Roller lever R50	Roller lever R63
Item			Model	Model	Model
Basic		Standard load	WLCA2	WLCA2-7	WLCA2-8
Basic		Microload	WL01CA2	WL01CA2-7	WL01CA2-8
Overtravel	General- purpose	Standard load	WLH2	-	-
	General- purpose	Microload	WL01H2	-	-
	90° operation	Standard load	WLCA2-2	-	-
		Microload	WL01CA2-2	-	-
		Standard load	WLCA2-2N	-	-
		Microload	WL01CA2-2N	-	-

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator			Adjustable roller lever	Adjustable rod lever 25 to 140mm	Adjustable rod lever 350 to 380mm	Rod spring lever
Item			Model	Model	Model	Model
Basic		Standard load	WLCA12	WLCL	-	-
Basic		Microload	WL01CA12	WL01CL	-	-
Overtravel	General- purpose	Standard load	WLH12	WLHL	WLHAL4	WLHAL5
	General- purpose	Microload	WL01H12	WL01HL	-	-
	90° operation	Standard load	WLCA12-2	WLCL-2	-	-
		Microload	WL01CA12-2	-	-	-
		Standard load	WLCA12-2N	WLCL-2N	-	-
		Microload	WL01CA12-2N	WL01CL-2N	-	-

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator		Fork lock lever (with WL-5A100 plastic roller lever)	Fork lock lever (with WL-5A102 plastic roller lever)	Fork lock lever (with WL-5A104 plastic roller lever)	Fork lock lever (with WL-5A104 plastic roller lever)
Item		Model	Model	Model	Model
Main- tained	Standard load	WLCA32-41	WLCA32-42	WLCA32-43	WLCA32-44
Main- tained	Microload	WL01CA32-41	—	WL01CA32-43	—

Actuator		Top plunger	Top-roller plunger	Top-ball plunger	Sealed top-roller plunger
Item		Model	Model	Model	Model
Top plunger	Standard load	WLD	WLD2	WLD3	WLD28
Top plunger	Microload	WL01D	WL01D2	WL01D3	WL01D28

Actuator		Horizontal plunger	Horizontal-roller plunger	Horizontal-ball plunger
Item		Model	Model	Model
Side plunger	Standard load	WLSD	WLSD2	WLSD3
Side plunger	Microload	WL01SD	WL01SD2	WL01SD3

Actuator		Coil spring (spring diameter: 6.5)	Coil spring (spring diameter: 4.8)	Coil spring (resin rod diameter: 8)	Steel wire (wire diameter: 1)
Item		Model	Model	Model	Model
Flexible rod	Standard load	WLNJ	WLNJ-30	WLNJ-2	WLNJ-S2
Flexible rod	Microload	WL01NJ	WL01NJ-30	WL01NJ-2	WL01NJ-S2

Actuator			Roller lever R38	Roller lever R50	Roller lever R63	Adjustable roller lever
Item			Model	Model	Model	Model
Basic		Neon lamp	WLCA2-LE	WLCA2-7LE	WLCA2-8LE	WLCA12-LE
Basic		LED	WLCA2-LD	WLCA2-7LD	WLCA2-8LD	WLCA12-LD
Overtravel	General- purpose	Neon lamp	WLH2-LE	-	-	WLH12-LE
	General- purpose	LED	WLH2-LD	-	-	WLH12-LD
	90° operation	Neon lamp	WLCA2-2LE	-	-	WLCA12-2LE
		LED	WLCA2-2LD	-	-	WLCA12-2LD
		Neon lamp	WLCA2-2NLE	-	-	WLCA12-2NLE
		LED	WLCA2-2NLD	-	-	WLCA12-2NLD

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator			Adjustable rod lever 25 to 140 mm	Adjustable rod lever 350 to 380 mm	Rod spring lever
Item			Model	Model	Model
Basic		Neon lamp	WLCL-LE	-	-
Basic		LED	WLCL-LD	-	-
Overtravel	General- purpose	Neon lamp	WLHL-LE	WLHAL4-LE	WLHAL5-LE
	General- purpose	LED	WLHL-LD	WLHAL4-LD	WLHAL5-LD
	90° operation	Neon lamp	WLCL-2LE	-	-
		LED	WLCL-2LD	-	-
		Neon lamp	WLCL-2NLE	-	-
		LED	WLCL-2NLD	-	-

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator		Fork lock lever (with WL-5A100 Plastic Roller Lever)	Fork lock lever (with WL-5A102 Plastic Roller Lever)	Fork lock lever (with WL-5A104 Plastic Roller Lever)
Item		Model	Model	Model
Maintained	Neon lamp	WLCA32-41L E	WLCA32-42LE	WLCA32-43LE
Maintained	LED	WLCA32-41LD	-	WLCA32-43LD

Actuator		Top plunger	Top-roller plunger	Top-ball plunger	Sealed top-roller plunger
Item		Model	Model	Model	Model
Top plunger	Neon lamp	WLD-LE	WLD2-LE	WLD3-LE	WLD28-LE
Top plunger	LED	WLD-LD	WLD2-LD	WLD3-LD	WLD28-LD

Actuator		Horizontal plunger	Horizontal-roller plunger	Horizontal-ball plunger
Item		Model	Model	Model
Side plunger	Neon lamp	WLSD-LE	WLSD2-LE	WLSD3-LE
Side plunger	LED	WLSD-LD	WLSD2-LD	WLSD3-LD

Actuator		Coil spring (spring diameter: 6.5)	Coil spring (spring diameter: 4.8)	Coil spring (resin rod diameter: 8)	Steel wire (wire diameter: 1)
Item		Model	Model	Model	Model
Flexible rod	Neon lamp	WLNJ-LE	WLNJ-30LE	WLNJ-2LE	WLNJ-S2LE
Flexible rod	LED	WLNJ-LD	WLNJ-30LD	WLNJ-2LD	WLNJ-S2LD

Actuator	Item					Basic	Overtravel
	Item					Basic	General-purpose
	Wiring				Built-in switch specification	Model	Model
Roller lever	2-conductor	DC	NO	connector pins No. 3, 4	Standard	WLCA2-LDK13	WLH2-LDK13
	2-conductor	DC	NO	connector pins No. 3, 4	Airtight seal	WLCA2-55LDK13	WLH2-55LDK13
	4-conductor	DC			Standard	WLCA2-LDK43	WLH2-LDK43
	4-conductor	DC			Airtight seal	WLCA2-55LDK43	WLH2-55LDK43
Top-roller plunger	2-conductor	DC	NO	connector pins No. 3, 4	Standard	WLD2-LDK13	-
	2-conductor	DC	NO	connector pins No. 3, 4	Airtight seal	WLD2-55LDK13	-
	4-conductor	DC			Standard	WLD2-LDK43	-
	4-conductor	DC			Airtight seal	WLD2-55LDK43	-

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actu- ator	Item					Basic	Overtravel
	Item					Basic	General-purpose
	Wiring				Built-in switch specification	Model	Model
Roller lever	2- conductor	DC	NO	connector pins No. 3, 4	Standard	WLCA2-LD-M1J	WLH2-LD-M1J
				connector pins No. 3, 4	Airtight seal	WLCA2-55LD-M1J	-
				connector pins No. 1, 4	Standard	WLCA2-LD-M1GJ	WLH2-LD-M1GJ
				connector pins No. 1, 4	Airtight seal	WLCA2-55LD-M1GJ	-
			NC	connector pins No. 3, 2	Standard	-	-
			NC	connector pins No. 3, 2	Airtight seal	WLCA2-55LD-M1JB	-
	4- conductor	DC			Standard	WLCA2-LD-DGJ03	WLH2-LD-DGJ03
	4- conductor	DC			Airtight seal	WLCA2-55LD-DGJ03	-
	3- conductor	DC		connector pins No. 2, 3, 4	Standard	WLCA2-LD-DK1EJ03	-
	3- conductor	DC		connector pins No. 2, 3, 4	Airtight seal	-	-
Top- roller plunger	2- conductor	DC	NO	connector pins No. 3, 4	Standard	WLD2-LD-M1J	-
				connector pins No. 3, 4	Airtight seal	WLD2-55LD-M1J	-
				connector pins No. 1, 4	Standard	WLD2-LD-M1GJ	-
				connector pins No. 1, 4	Airtight seal	WLD2-55LD-M1GJ	-
			NC	connector pins No. 3, 2	Standard	-	-
			NC	connector pins No. 3, 2	Airtight seal	-	-
	4- conductor	DC			Standard	WLD2-LD-DGJ03	-
	4- conductor	DC			Airtight seal	-	-
	3- conductor	DC		connector pins No. 2, 3, 4	Standard	WLD2-LD-DK1EJ03	-
	3- conductor	DC		connector pins No. 2, 3, 4	Airtight seal	WLD2-55LD-DK1EJ03	-

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Note: Models are also available with ground terminals.

Actuator					Roller lever R38
Item					Basic	Overtravel
					Basic	General-purpose
					Model	Model
Airtight seal			No indicator		WLCA2-55	WLH2-55
			Indicator	LED	WLCA2-55LD	WLH2-55LD
			Indicator	Neon	WLCA2-55LE	-
Hermetic seal	Molded terminals	-139	No indicator		WLCA2-139	WLH2-139
			Indicator	NC wiring	WLCA2-139LD2	-
			Indicator	NO wiring	WLCA2-139LD3	-
		-140	No indicator		WLCA2-140	WLH2-140
			Indicator	NC wiring	WLCA2-140LD2	-
			Indicator	NO wiring	WLCA2-140LD3	-
		-141	No indicator		WLCA2-141	WLH2-141
			Indicator	NC wiring	WLCA2-141LD2	-
			Indicator	NO wiring	WLCA2-141LD3	WLH2-141LD3
	Anti-coolant		No indicator		WLCA2-RP60	WLH2-RP60
			Indicator	NC wiring	WLCA2-RP60LD2	-
			Indicator	NO wiring	WLCA2-RP60LD3	-
Heat-resistant			No indicator		WLCA2-TH	WLH2-TH
Low-temperature					WLCA2-TC	WLH2-TC
Corrosion-proof					WLCA2-RP	WLH2-RP
Weather-proof					WLCA2-P1	WLH2-P1

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator					Roller lever R38
Item					Overtravel
					90° (-2 model)	90° (-2N model)
					Model	Model
Airtight seal			No indicator		WLCA2-255	WLCA2-2N55
			Indicator	LED	WLCA2-255LD	WLCA2-2N55LD
			Indicator	Neon	WLCA2-255LE	WLCA2-2N55LE
Hermetic seal	Molded terminals	-139	No indicator		WLCA2-2139	WLCA2-2N139
			Indicator	NC wiring	WLCA2-2139LD2	-
			Indicator	NO wiring	WLCA2-2139LD3	-
		-140	No indicator		-	WLCA2-2N140
			Indicator	NC wiring	-	-
			Indicator	NO wiring	-	-
		-141	No indicator		-	-
			Indicator	NC wiring	-	-
			Indicator	NO wiring	-	-
	Anti-coolant		No indicator		WLCA2-2RP60	-
			Indicator	NC wiring	WLCA2-2RP60LD2	-
			Indicator	NO wiring	WLCA2-2RP60LD3	-
Heat-resistant			No indicator		WLCA2-2TH	WLCA2-2NTH
Low-temperature					WLCA2-2TC	WLCA2-2NTC
Corrosion-proof					-	-

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator					Adjustable roller lever
Item					Basic	Overtravel
					Basic	General-purpose
					Model	Model
Airtight seal			No indicator		WLCA12-55	-
			Indicator	LED	WLCA12-55LD	-
			Indicator	Neon	WLCA12-55LE	-
Hermetic seal	Molded terminals	-139	No indicator		WLCA12-139	-
		-140			WLCA12-140	-
		-141			WLCA12-141	-
	Anti-coolant				WLCA12-RP60	-
Heat-resistant			No indicator		WLCA12-TH	WLH12-TH
Low-temperature					WLCA12-TC	WLH12-TC
Corrosion-proof					WLCA12-RP	WLH12-RP
Weather-proof					WLCA12-P1	WLH12-P1

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator		Adjustable roller lever
Item		Overtravel
		90° (-2 model)	90° (-2N model)
		Model	Model
Heat-resistant	No indicator	WLCA12-2TH	WLCA12-2NTH
Low-temperature	No indicator	WLCA12-2TC	WLCA12-2NTC

Actuator					Adjustable rod lever 25 to 140 mm
Item					Basic	Overtravel
					Basic	General-purpose
					Model	Model
Airtight seal			No indicator		WLCL-55	-
			Indicator	LED	WLCL-55LD	-
			Indicator	Neon	-	-
Hermetic seal	Molded terminals	-139	No indicator		WLCL-139	-
		-140			WLCL-140	-
		-141			-	-
	Anti-coolant				WLCL-RP60	-
Heat-resistant			No indicator		WLCL-TH	WLHL-TH
Low-temperature					WLCL-TC	WLHL-TC
Corrosion-proof					WLCL-RP	WLHL-RP
Weather-proof					WLCL-P1	WLHL-P1

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Actuator		Adjustable rod lever 25 to 140 mm
Item		Overtravel
		90° (-2 model)	90° (-2N model)
		Model	Model
Heat-resistant	No indicator	WLCL-2TH	WLCL-2NTH
Low-temperature		WLCL-2TC	WLCL-2NTC
Corrosion-proof		WLCL-2RP	-

Actuator					Top-roller plunger	Sealed top-roller plunger	Horizontal plunger
Item					Model	Model	Model
Airtight seal			No indicator		WLD2-55	WLD28-55	WLSD-55
			Indicator	LED	WLD2-55LD	WLD28-55LD	WLSD-55LD
			Indicator	Neon	WLD2-55LE	WLD28-55LE	-
Hermetic seal	Molded terminals	-139	No indicator		WLD2-139	WLD28-139	WLSD-139
	Molded terminals	-140			-	WLD28-140	-
	Anti-coolant				WLD2-RP60	WLD28-RP60	WLSD-RP60
Heat-resistant			No indicator		WLD2-TH	WLD28-TH	WLSD-TH
Low-temperature					WLD2-TC	-	WLSD-TC
Corrosion-proof					WLD2-RP	WLD28-RP	WLSD-RP

Note: The standard cable length for models with airtight seals is 5 m.

Actuator					Horizontal-roller plunger	Coil spring (spring diameter: 6.5)	Coil spring (resin rod diameter: 8)
Item					Model	Model	Model
Airtight seal			No indicator		WLSD2-55	WLNJ-55	WLNJ-255
			Indicator	LED	WLSD2-55LD	WLNJ-55LD	WLNJ-255LD
			Indicator	Neon	-	-	-
Hermetic seal	Molded terminals	-139	No indicator		WLSD2-139	WLNJ-139	-
	Molded terminals	-140			WLSD2-140	WLNJ-140	WLNJ-2140
	Anti-coolant				WLSD2-RP60	WLNJ-RP60	WLNJ-2RP60
Heat-resistant			No indicator		WLSD2-TH	WLNJ-TH	-
Low-temperature					WLSD2-TC	WLNJ-TC	WLNJ-2TC
Corrosion-proof					WLSD2-RP	WLNJ-RP	WLNJ-2RP

Note: The standard cable length for models with airtight seals is 5 m.

Actuator			Roller lever		Sealed top-roller plunger
Item			Double nut lever	Allen-head lever	Sealed top-roller plunger
Item			Model	Model	Model
Neon lamp operation indicator	Basic		WLCA2-LEAS	WLCA2-LES	WLD28-LES
Neon lamp operation indicator	Overtravel	General-purpose	WLH2-LEAS	WLH2-LES	-
LED operation indicator	Basic		WLCA2-LDAS	WLCA2-LDS	WLD28-LDS
LED operation indicator	Overtravel	General-purpose	-	WLH2-LDS	-

Note: 1. For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).
2. Ask your OMRON representative about WL01[]-[]S Microload Switches.

Item				*LED operation indicator 1**
				Basic	Overtravel
				Basic	General-purpose
Actuator				Model	Model
	Roller lever, screw terminal			WLMCA2-LD	WLMH2-LD
	Roller lever, direct-wired connector	2-conductor	AC	WLMCA2-LDK13A	—
		2-conductor	DC	WLMCA2-LDK13	WLMH2-LDK13
		4-conductor	AC	WLMCA2-LDK43A	WLMH2-LDK43A
		4-conductor	DC	WLMCA2-LDK43	WLMH2-LDK43
	Roller lever, pre-wired connector *2	2-conductor	DC	WLMCA2-LD-M1J	WLMH2-LD-M1J
	Roller lever, pre-wired connector *2	4-conductor	DC	WLMCA2-LD-DGJ03	WLMH2-LD-DGJ03

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).
*1. The default setting is “light-ON when not operating.”
Turn the lamp holder by 180° to change the setting to “light-ON when operating”. (Ask your OMRON representative about 2-conductor models.)
*2. With 0.3-m cable attached.

Voltage specification	Number of conductors	Cable length	Model
AC	2	2 m	XS2F-A421-DB0-F
	2	5 m	XS2F-A421-GB0-F
	4	2 m	XS2F-A421-D90-F
	4	5 m	XS2F-A421-G90-F
DC	2	2 m	XS2F-D421-DD0
	2	5 m	XS2F-D421-GD0
	4	2 m	XS2F-D421-D80-F
	4	5 m	XS2F-D421-G80-F

Actuator type	Set model	Head model (with Actuator)
Roller lever	WLCA2	WL-1H1100
	WLH2	WL-2H1100-1 *
	WLCA2-2	WL-3H1100
	WLCA2-2N	WL-6H1100
Adjustable roller lever	WLCA12	WL-1H2100
	WLH12	WL-2H2100-1 *
	WLCA12-2	WL-3H2100
	WLCA12-2N	WL-6H2100
Adjustable rod lever	WLCL	WL-4H4100
	WLCL-2	WL-3H4100
	WLCL-2N	WL-6H4100
Top plunger	WLD	WL-7H100
	WLD2	WL-7H200
	WLD3	WL-7H300
	WLD28	WL-7H400
Horizontal plunger	WLSD	WL-8H100
	WLSD2	WL-8H200
	WLSD3	WL-8H300
Fork lock lever	WLCA32-41	WL-5H5100
	WLCA32-42	WL-5H5102
	WLCA32-43	WL-5H5104
	WLCA32-44	WL-5H5104
Coil spring	WLNJ	WL-9H100
	WLNJ-30	WL-9H200
	WLNJ-2	WL-9H300
	WLNJ-S2	WL-9H400

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).
* The model number of Heads without levers are same as those of Heads with levers without the numbers at the end.
   Example: WL-1H1100 becomes WL-1H without the lever.
   However, the WLH2 and WLH12 become WL-2H-1 for the Heads without levers.
   Other Heads are also available. Ask your OMRON representative.

Actuator type		Switches without levers
Actuator type		Model
Switches for roller levers	Basic R38	WLRCA2
	General-purpose overtravel, 80°	WLRH2
	Overtravel, 90° operation	WLRCA2-2
	Overtravel, 90° operation	WLRCA2-2N
Switches for adjustable roller levers	Basic	WLRCA2
	General-purpose overtravel, 80°	WLRH2
	Overtravel, 90° operation	WLRCA2-2
	Overtravel, 90° operation	WLRCA2-2N
Switches for adjustable rod lever	Basic, 25 to 140 mm	WLRCL
	Overtravel, 90° operation, 25 to 140 mm	WLRCA2-2
	Overtravel, 90° operation, 25 to 140 mm	WLRCA2-2N
Switches for top plungers	-	-
Switches for horizontal plungers	-	-
Switches for fork lock levers	Maintained, WL-5A100 Maintained, WL-5A102 Maintained, WL-5A104	WLRCA32
Switches for coil springs	-	-

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Cover	Cover only with indicator
Item	Model
Neon lamp	WL-LE
LED	WL-LD

Note: The default setting is "light-ON when not operating."
Turn the lamp holder by 180° to change the setting to "light-ON when operating."

Head (with actuator)		Lever		Cover with indicator	Switches without Levers
Complete Heads with allen-head levers	Double Nut Lever	Allen- head Lever	Double Nut Lever	Cover with Indicator	Switches without levers
Model	Model	Model	Model	Model	Model
WL-1H1100S (for WLCA2-[])	WL-2H1100S (for WLH2-[])	WL-1A103S Roller lever	WL-1A105S Roller Lever	Neon lamp WL-LES	WLRCA2-LDS
				Neon lamp WL-LES	WLRH2-LES WLRH2-LDS
				LED (LED) WL-LDS

Note: For details of The WL high-sensitivity, high-precision models, refer to Limit Switch WL-N/WL Datasheet (Cat. No. C151-E1).

Heads can be replaced within the same model group. They cannot be replaced between different model groups.

Group No.	Set model number	Head model number (with Actuator)
1	WLCA2	WL-1H1100
	WLCA2-7	WL-1H1200
	WLCA2-8	WL-1H1300
	WLCA12	WL-1H2100
2	WLCL	WL-4H4100 *
3	WLH2	WL-2H1100-1
	WLH12	WL-2H2100-1
	WLHL	WL-2H4100
	WLHAL4	WL-2H4106
	WLHAL5	WL-2H4107
4	WLCA2-2N	WL-6H1100
	WLCA12-2N	WL-6H2100
	WLCL-2N	WL-6H4100
5	WLCA2-2	WL-3H1100
	WLCA12-2	WL-3H2100
	WLCL-2	WL-3H4100
6	WLCA32-41	WL-5H5100
	WLCA32-42	WL-5H5102
	WLCA32-43	WL-5H5104
	WLCA32-44	WL-5H5104
7	WLD	WL-7H100
	WLD2	WL-7H200
	WLD3	WL-7H300
8	WLD28	WL-7H400 *
9	WLSD	WL-8H100
	WLSD2	WL-8H200
	WLSD3	WL-8H300
10	WLNJ	WL-9H100
10	WLNJ-30	WL-9H200
11	WLNJ-2	WL-9H300 *
12	WLNJ-S2	WL-9H400 *

* This Heads are special and must be used. Do not use any other Head.

WL

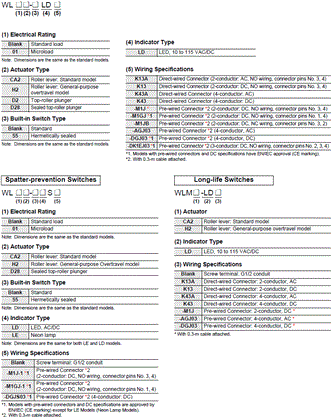

Wide Range of Two-circuit Switches; Select One for the Operating Environment/Application WL/Basic models

Model Number Structure

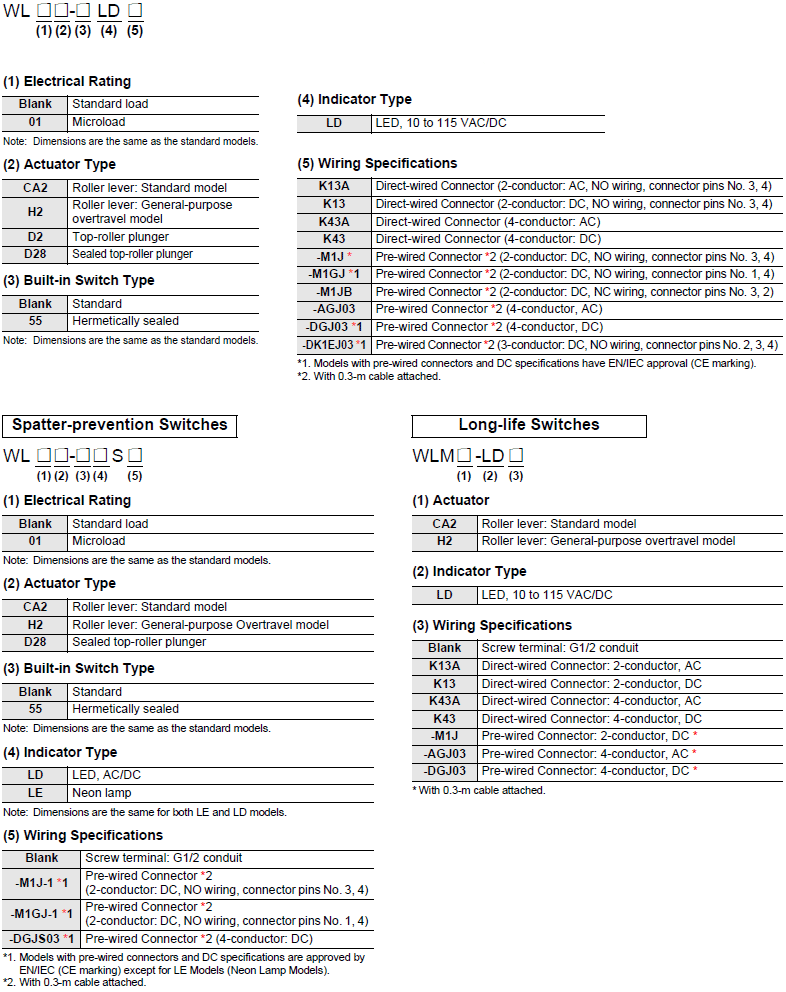

Model Number Legend

General-purpose and Environment-resistant Switches

General-purpose Switches

Sensor I/O Connector Switches

General-purpose Switches

Standard Switches

Lever

Plunger

Flexible Rod

Indicator-equipped Switches

Lever

Plunger

Flexible Rod

Sensor I/O Connector Switches

Direct-wired Connectors

Pre-wired Connectors

Environment-resistant Switches

Spatter-prevention Switches

Long-life Switches

Connecting Cables

Individual Parts

Heads

Switches without levers

Covers with Operation Indicators

Spatter-prevention Products

WL Head Replacement

Product Category
