Industrial Automation

Industrial Automation

NA Series

Programmable Terminal

NA Series

The Omron Sysmac HMI enables faster, more efficient control and monitoring - and a more natural, proactive relationship between operator and machine. Wide screen models: 7, 9, 12 and 15 inches

Performance Specifications

Display

Item Specification
NA5-15W NA5-12W NA5-9W NA5-7W
Display panel
*1
Display device TFT LCD
Screen size 15.4 inches 12.1 inches 9.0 inches 7.0 inches
Resolution 1,280 × 800 dots (horizontal × vertical) 800 × 480 dots (horizontal × vertical)
Colors 16,770,000 colors (24 bit full colors)
Effective display
area
331 × 207 mm
(horizontal ×
vertical)
261 × 163 mm
(horizontal ×
vertical)
197 × 118 mm
(horizontal ×
vertical)
152 × 91 mm
(horizontal ×
vertical)
View angles Left: 60°, Right: 60°, Top: 60°, Bottom: 60°
Backlight *2 Life 50,000 hours min. *3
Brightness
adjustment
200 levels
Type LED
Front panel
indicators *4
RUN Lit green: Normal operation Lit red: Error

*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and
       dark pixels fall within the following standard ranges.

Model Standard range
NA5-15W[][][][]-V1
NA5-12W[][][][]-V1
NA5-9W[][][][]-V1
NA5-7W[][][][]-V1
Number of light and dark pixels: 10 or less. (There must not be 3 consecutive light/dark pixels.)

*2. The backlight can be replaced at an OMRON maintenance base.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. The life expectancy
       is drastically shortened if Programmable Terminal is used at high temperatures.
*4. The brightness of the front panel indicators is also adjustable when you adjust the brightness of the backlight.

Operation

Item Specification
NA5-15W NA5-12W NA5-9W NA5-7W
Touch panel Method: Analog resistive membrane type
Resolution: 16,384 × 16,384
Life: 1,000,000 operations
Function keys *1 3 inputs (capacitance inputs)

*1. Each function key has blue indicator. The brightness of the function key indicators is also adjustable when you adjust
      the brightness of the backlight.

Data Capacity

Item Specification
NA5-15W NA5-12W NA5-9W NA5-7W
User data capacity 256 MB

External Interfaces

Item Specifications (Same for all models.)
Ethernet
ports
Applications Port 1: Connecting to anything other than the Sysmac Studio, e.g., device
connections and VNC clients
Port 2: Connecting to the Sysmac Studio in addition to the applications of port 1.
Number of ports 2 ports
Compliant standards IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), and IEEE 802.3ab
(1000Base-T)
Transmission media Shielded twisted-pair (STP) cable: Category 5, 5e, or higher
Transmission distance 100 m
Connector RJ-45 8P8C modular connector
USB host
ports *1 *2
Applications USB Memory Device, keyboard, or mouse
Number of ports 2 ports
Compliant standards USB 2.0
Transmission distance 5 m max.
Connector Type-A connector
USB slave
port *1
Applications Sysmac Studio connection
Number of ports 1 port
Compliant standards USB 2.0
Transmission distance 5 m max.
Connector Type-B connector
Serial port Applications Device Connection
Number of ports 1 port
Compliant standards RS-232C
Transmission distance 15 m max.
Connector D-DUB 9-pin female connector
SD Memory
Card slot
Applications To transfer or store the project or to store log data.
Number of slots 1 slot
Compliant standards SD/SDHC

*1. Connection to all USB 2.0-compliant devices is not guaranteed.
*2. Use a USB memory for temporary applications such as transferring data.
Note: 1. For information on the product whose model number does not end with -V1, refer to the Programmable Terminal NA Series Datasheet (Cat. No. V413).

General Specifications

Item Specification
NA5-15W NA5-12W NA5-9W NA5-7W
Rated supply voltage 24 VDC
Allowable power
supply voltage range
19.2 to 28.8 VDC (24 VDC ±20%)
Allowable
momentary power
interruption time
Operation for momentary power interruption is not specified.
Power consumption 29 W max. 25 W max. 23 W max. 19 W max.
Ambient operating
temperature
0 to 50°C *1 *2
Ambient storage
temperature
-20 to +60°C *3
Ambient operating
humidity
10 to 90% *2
Must be no condensation.
Atmosphere Must be free from corrosive gases.
Pollution degree 2 or less: Meets IEC 61010-2-201.
Noise immunity 2 kV on power supply line (Conforms to IEC 61000-4-4.)
Vibration resistance
(during operation)
Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2 for 100 minutes each in
X, Y, and Z directions
(Time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 min.)
Shock resistance
(during operation)
Conforms to IEC 60028-2-27.
147 m/s2 3 times each in X, Y, and Z directions
Dimensions 420 × 291 × 69 mm
(W × H × D)
340 × 244 × 69 mm
(W × H × D)
290 × 190 × 69 mm
(W × H × D)
236 × 165 × 69 mm
(W × H × D)
Panel cutout
dimensions
392 +1,0 ×
268 +1,0 mm
(horizontal × vertical)
Panel thickness:
1.6 to 6.0 mm *4
310 +1,0 ×
221 +1,0 mm
(horizontal × vertical)
Panel thickness:
1.6 to 6.0 mm *4
261 +1,0 ×
166 +1,0 mm
(horizontal × vertical)
Panel thickness:
1.6 to 6.0 mm *4
197 +0.5,0 ×
141 +0.5,0 mm
(horizontal × vertical)
Panel thickness:
1.6 to 6.0 mm *4
Weight 3.2 kg max. 2.4 kg max. 1.8 kg max. 1.4 kg max.
Degree of
protection
Front-panel controls: IP65 oil-proof type, UL Type 4X (at initial state)
To reinstall the NA Unit in a panel, contact your OMRON representative for replacement of the
rubber packing.
Battery life Battery life: 5 years at 25°C
The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a
super capacitor for 5 minutes after removing the old battery.
(This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.)
International
standards *5
UL61010-2-201/CSA C22.2 NO.61010-2-201:14 *6
EMC Directive (2004/108/EC) EN 61131-2:2007
Shipbuilding standards LR, DNV, and NK
IP65 oil-proof, UL Type 4X *7(front panel only)
UL 121201, 9th Edition/CSA C22.2 NO.213-2017
EAC IEC61131-2:2007
KC Standards KN61131-2 2018
RCM EN61000-6-4:2007+A1:2011

NA Series Specifications 12

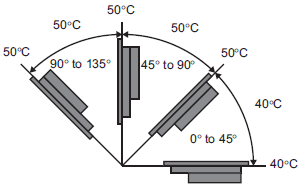

*1. The ambient operating temperature is subject to the following restrictions, depending on the mounting angle.
• The ambient operating temperature is 0° to 40°C when the mounting angle is 0° or more and less than 45° to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 45° or more and 90° or less to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 90° or more and 135° or less to the horizontal.

*2. Use the Programmable Terminal within the following temperature and humidity ranges.

NA Series Specifications 13

*3. Store the Programmable Terminal within the following temperature and humidity ranges.

NA Series Specifications 14

*4. When the NA-[]WATW01 High-pressure Waterproof Attachment is used, the panel thickness is between 1.6 to 4.5 mm.
*5. Check with your OMRON representative or refer to the following OMRON website for the latest information on the
       applicable standards for each model: www.ia.omron.com.
*6. Use power supply Class 2 to conform to UL Standards.
*7. Use the NA-[]WATW01 High-pressure Waterproof Attachment (sold separately) to conform to UL Type 4X.
Note: 1. For information on the product whose model number does not end with -V1, refer to the Programmable Terminal NA Series Datasheet (Cat. No. V413).

Version Information

NA series and Programming Devices

NA series Corresponding unit versions/version
Model NA system version NJ/NX/NY-series Controller
NX701-[][][][] NY512-[][][][]
NX502-[][][][] NY532-[][][][]
NX102-[][][][] NJ501-[][][][]
NX1P2-[][][][] NJ301-[][][][]
NX-CSG320 NJ101-[][][][]
Sysmac studio
NA5-[][][][][][]-V1 1.17 or later NX502: 1.60 or later 1.54 or higher
1.10 or later NX-CSG320: 1.00 or later 1.24 or higher
1.09 or later NX102: 1.30 or later 1.23 or higher
1.08 or later NX1P2: 1.13 or later
NY512: 1.12 or later
NY532: 1.12 or later
NX701: 1.10 or later
NJ101: 1.10 or later
NJ501: 1.01 or later
NJ501 Database Connection: 1.05 or later
NJ301: 1.01 or later
1.40 or higher

Supported Devices

NA5-[][][][][][][]-V1

Manufacturer Models Connection method Communications driver
OMRON NX102-[][][][]
NX1P2-[][][][]
NX502-[][][][]
NX701-[][][][]
NJ501-[][][][]
NJ301-[][][][]
NJ101-[][][][]
NY512-[][][][]
NY532-[][][][]
NX-CSG320
CK3M-CPU1[]1
Built-in EtherNet/IP port Modbus/TCP
CJ2H-CPU64/65/66/67/68-EIP
CJ2M-CPU31/32/33/34/35
Built-in EtherNet/IP port CIP Ethernet
CJ2H-CPU64/65/66/67/68-EIP
CJ2M-CPU31/32/33/34/35
CJ1W-EIP21
CJ2H-CPU64/65/66/67/68-EIP
CJ2M-CPU31/32/33/34/35
Built-in EtherNet/IP port FINS Ethernet
CJ1H-CPU65H/66H/67H
CJ1H-CPU65H/66H/67H-R
CJ1G-CPU42H/43H/44H/45H
CJ1M-CPU11/12/13/21/22/23
CJ2H-CPU64/65/66/67/68(-EIP)
CJ2M-CPU11/12/13/14/15
CJ2M-CPU31/32/33/34/35
CJ1W-ETN21
CJ1W-EIP21
CS1G-CPU42H/43H/44H/45H
CS1H-CPU63H/64H/65H/66H/67H
Built-in Ethernet port
CS1W-ETN21
CS1W-EIP21
CS1D-CPU65H/67H/67HA/68HA/44SA/57SA Built-in Ethernet port
CS1W-ETN21
CS1W-ETN21D
CS1W-EIP21
CP1H-[][][][][]-[] CP1W-CIF41
CP1L-[][][][][]-[]
CP2E-N[][]D[]-[]
Built-in Ethernet port
CP1W-CIF41
CK3E-1[]10
CK3M-CPU1[]1
Built-in Ethernet port Modbus/TCP
CS1G-CPU42H/43H/44H/45H
CS1H-CPU63H/64H/65H/66H/67H
CS1D-CPU65H/67H/67HA/68HA/44SA/57SA
Built-in RS-232C port
CS1W-SCB21-V1
CS1W-SCB41-V1
CS1W-SCU21-V1
CS1W-SCU31-V1
Host Link
CJ2H-CPU64/65/66/67/68(-EIP)
CJ2M-CPU11/12/13/14/15/31/32/33/34/35
Built-in RS-232C port
CJ1W-SCU22
CJ1W-SCU32
CJ1W-SCU42
CP1L-[][][][][]-[]
CP1H-[][][][][]-[]
CP1W-CIF01
CP1W-CIF11
CP1W-CIF12-V1
CP2E-[][][]D[]-[] Built-in RS-232C port
CP1W-CIF01
CP1W-CIF11
CP1W-CIF12-V1
CP2W-CIFD1
CP2W-CIFD2

NA-RTLD[][]

Manufacturer Models Connection method Communications driver
OMRON NX102-[][][][]
NX1P2-[][][][]
NX502-[][][][]
NX701-[][][][]
NJ501-[][][][]
NJ301-[][][][]
NJ101-[][][][]
NY512-[][][][]
NY532-[][][][]
NX-CSG320
Built-in EtherNet/IP port Ethernet
