Industrial Automation

K7DD

Advanced Motor Condition Monitoring Device

K7DD

Implementing predictive maintenance with real-time condition monitoring of variable speed motors

last update: March 1, 2023

(Unit: mm)

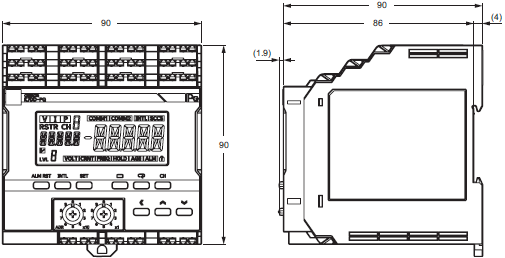

K7DD

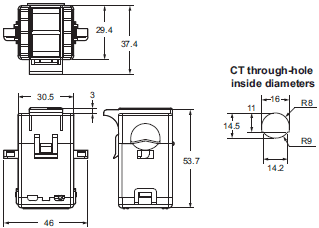

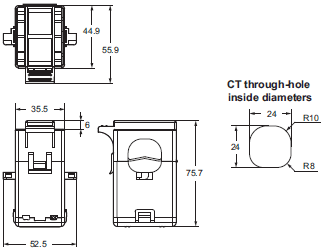

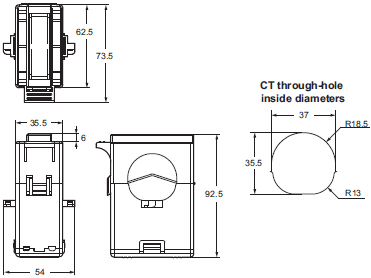

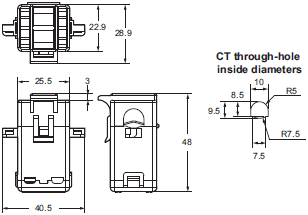

Special CT (Current Transformer)

K6CM-CICB005-C
K6CM-CICB005

K6CM-CICB025-C
K6CM-CICB025

K6CM-CICB100-C
K6CM-CICB100

K6CM-CICB200-C
K6CM-CICB200

K6CM-CICB400-C
K6CM-CICB400

CT-supplied cable *

* The CT-supplied cable is attached to the CT.

Note: 1. The "-C" at the end of the special CTs refer to the models compliant with UL certification. Models without "-C" can
also be used if UL certification is not required. The ratings and specifications are common to all of them.
2. To comply with UL certification for the special CT, refer to Conformance to Safety Standards (Data Sheet).
3. The CT input terminals of the K7DD can be connected in either direction of the special CT regardless of polarity.

Optional Products for DIN Track Mounting

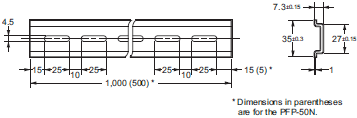

DIN Tracks

PFP-100N
PFP-50N

End Plate

PFP-M

last update: March 1, 2023
