EE-SPW311 / 411

Discontinued On Sep. 2025

EE-SPW311 / 411

Long-distance Through-beam Photomicrosensor

EE-SPW311 / 411

Through-beam Photomicrosensor with a sensing distance as long as 1 m.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: October 12, 2012

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

EE-SPW311
EE-SPW411

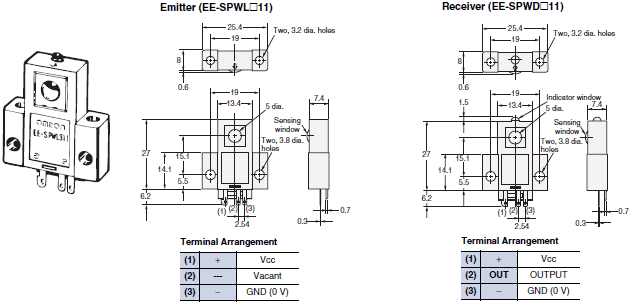

EE-SPW311 / 411 Dimensions 3

Accessories (Included)

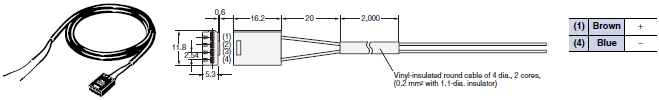

Connector with Cable for Emitter
EE-1006L

EE-SPW311 / 411 Dimensions 5

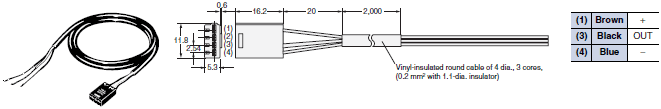

Connector with Cable for Receiver
EE-1006D

EE-SPW311 / 411 Dimensions 6

Note: These cables can also be ordered separately.
