E5CSV
Temperature Controllers
Easy Setting Using DIP Switch and Simple Functions in DIN 48 × 48 mm-size Temperature Controllers
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
last update: June 1, 2020
Model Number Structure

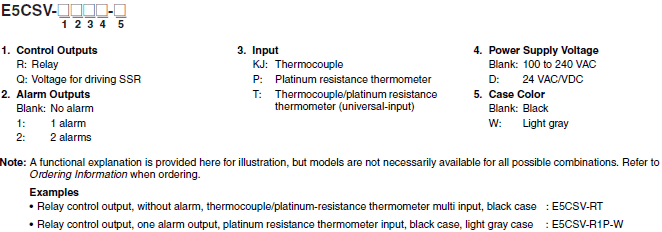

Model Number Legend
Models with Terminal Blocks
Ordering Information
List of Models
Case Color: Light Gray, Thermocouple or Platinum Resistance Thermometer, Power Supply Voltage: 100 to 240 VAC
| Size | Type | Control
modes |
Alarms | Outputs | Model with
thermocouple |
Model with
platinum resistance thermometer |
|---|---|---|---|---|---|---|
| E5CSV
48 × 48mm |
Terminal
block |
ON/OFF
or PID |
1 | Relay | E5CSV-R1KJ-W | E5CSV-R1P-W |
| Voltage (for driving SSR) | E5CSV-Q1KJ-W | E5CSV-Q1P-W |
Case Color: Light Gray, Thermocouple, Power Supply Voltage: 24 VAC/VDC
| Size | Type | Control modes | Alarms | Outputs | Model with thermocouple |
|---|---|---|---|---|---|
| E5CSV 48 × 48mm |
Terminal block | ON/OFF or PID | 1 | Relay | E5CSV-R1KJD-W |
Case Color: Light Gray, Universal-input, Power Supply Voltage: 100 to 240 VAC
| Size | Type | Control modes | Alarms | Outputs | Model with universal-input
(thermocouple or platinum resistance thermometer) |
|---|---|---|---|---|---|
| E5CSV
48 × 48mm |
Terminal block | ON/OFF or PID | 0 | Relay | E5CSV-RT |
| Voltage (for driving SSR) | E5CSV-QT | ||||
| 1 | Relay | E5CSV-R1T | |||
| Voltage (for driving SSR) | E5CSV-Q1T | ||||
| 2
(See note.) |
Relay | E5CSV-R2T | |||
| Voltage (for driving SSR) | E5CSV-Q2T |
Note: There is no alarm output 2 mode switch. The default setting for alarm output 2 is for the upper limit alarm mode.
To change the setting, change the alarm type for alarm output 2 in initial setting level 5. For details, refer to the
“E5CSV/E5CS-U Digital Temperature Controller User’s Manual” (Cat. No. H140).
To change the setting, change the alarm type for alarm output 2 in initial setting level 5. For details, refer to the
“E5CSV/E5CS-U Digital Temperature Controller User’s Manual” (Cat. No. H140).
Case Color: Black, Universal-input, Power Supply Voltage: 24 VAC/VDC
| Size | Type | Control modes | Alarms | Outputs | Model with universal-input
(thermocouple or platinum resistance thermometer) |
|---|---|---|---|---|---|
| E5CSV
48 × 48mm |
Terminal block | ON/OFF or PID | 0 | Relay | E5CSV-RTD |
| Voltage (for driving SSR) | E5CSV-QTD | ||||
| 1 | Relay | E5CSV-R1TD | |||
| Voltage (for driving SSR) | E5CSV-Q1TD | ||||
| 2
(See note.) |
Relay | E5CSV-R2TD | |||
| Voltage (for driving SSR) | E5CSV-Q2TD |
Note: There is no alarm output 2 mode switch. The default setting for alarm output 2 is for the upper limit alarm mode.
To change the setting, change the alarm type for alarm output 2 in initial setting level 5. For details, refer to the
“E5CSV/E5CS-U Digital Temperature Controller User’s Manual” (Cat. No. H140).
To change the setting, change the alarm type for alarm output 2 in initial setting level 5. For details, refer to the
“E5CSV/E5CS-U Digital Temperature Controller User’s Manual” (Cat. No. H140).
Accessories (Order Separately)
Protective Cover
| Type | Model |
|---|---|
| Hard Protective Cover | Y92A-48B |
Terminal Cover
| Model |
|---|
| E53-COV17 |
Note: The E53-COV10 cannot be used.
DIN Track Mounting Adapter
| Model |
|---|
| Y92F-52 |
Rubber Packing
| Model |
|---|
| Y92S-29 |
Note: The Rubber Packing is provided with the Digital Controller.
