Basic-type Digital Temperature Controller (48 x 48 mm)


New 48 x 48-mm Basic Temperature Controller with Enhanced Functions and Performance. Improved Indication Accuracy and Preventive Maintenance Function.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Terminal Models

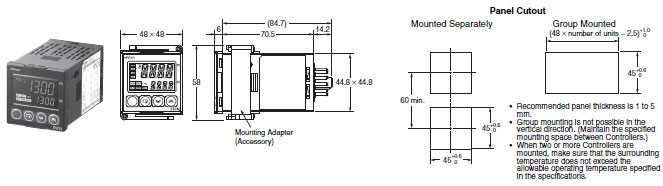

E5CN, E5CN-U Dimensions 1

Note: The terminal block cannot be removed.

Plug-in Models

E5CN, E5CN-U Dimensions 2

Accessories (Order Separately)

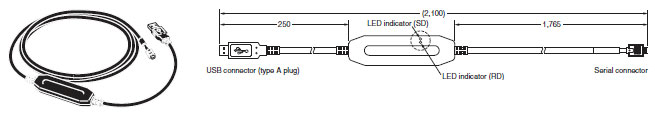

USB-Serial Conversion Cable

E5CN, E5CN-U Dimensions 4

Terminal Cover

E5CN, E5CN-U Dimensions 5

Note: The E53-COV10 cannot be used.

Waterproof Packing
Y92S-P8 (for DIN 48 × 48)

E5CN, E5CN-U Dimensions 6

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.

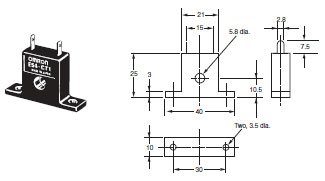

Current Transformers


E5CN, E5CN-U Dimensions 8


E5CN, E5CN-U Dimensions 9

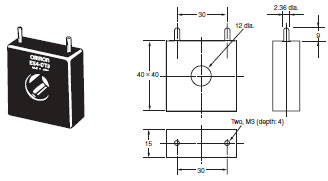

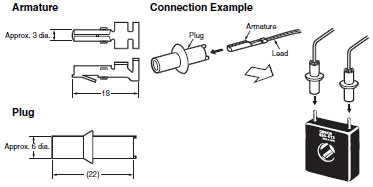

E54-CT3 Accessory

E5CN, E5CN-U Dimensions 10

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E5CN, E5CN-U Dimensions 11

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E5CN, E5CN-U Dimensions 12

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for the Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

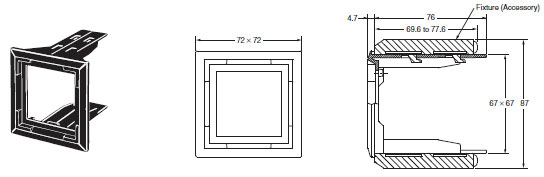

Note: 1. Use this Adapter when the panel has already been prepared for the E5B[].
           2. The Adapter is available only in black.

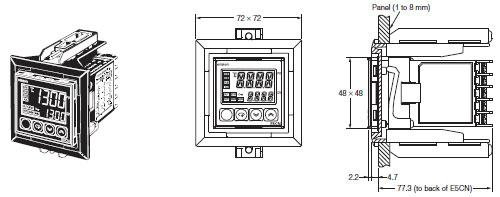

E5CN, E5CN-U Dimensions 14

Mounted to E5CN

E5CN, E5CN-U Dimensions 15

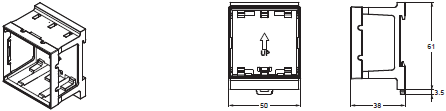

DIN Track Mounting Adapter


Note: This Adapter cannot be used together with the Terminal Cover.
           Remove the Terminal Cover to use the Adapter.

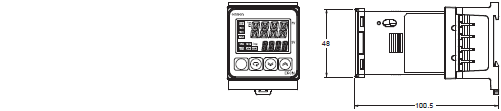

E5CN, E5CN-U Dimensions 17

Mounted to E5CN

E5CN, E5CN-U Dimensions 18

E5CN-U Wiring Socket

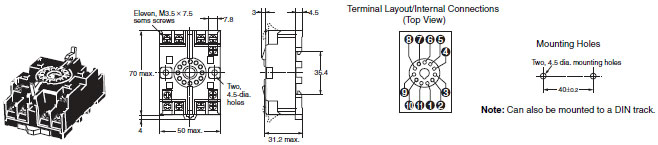

Front-connecting Socket

E5CN, E5CN-U Dimensions 20

Note: A model with finger protection (P2CF-11-E) is also available.

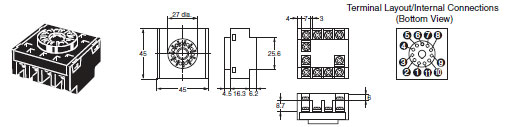

Back-connecting Socket

E5CN, E5CN-U Dimensions 21

Note: 1. Using any other sockets will adversely affect accuracy. Use only the specified sockets.
           2. A Protective Cover for finger protection (Y92A-48G) is also available.
