D6FZ-FGS Series

Air Flow Sensor

D6FZ-FGS Series

The Best Product to Measure Compressed Air on Production Lines. Simultaneous Measurement of Leakage, Usage and Pressure.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

(Unit: mm)

Unspecified dimensions tolerances: Tolerance class IT16

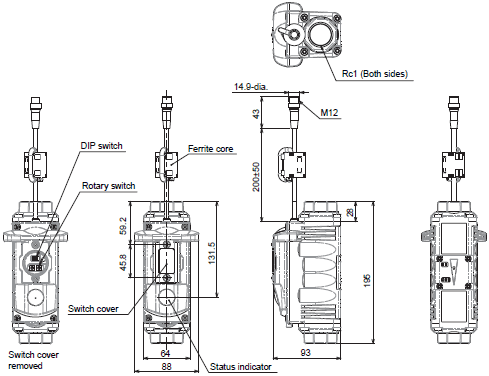

Air Flow Sensor

D6FZ-FGS1000

D6FZ-FGS Series Dimensions 3

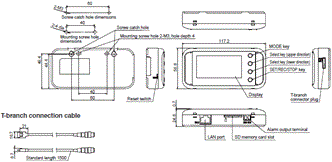

Air Flow Station

D6FZ-FGX21

D6FZ-FGS Series Dimensions 5

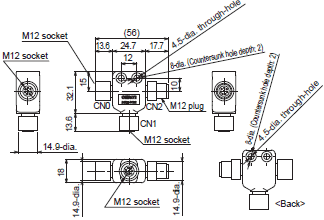

T-branch connector

D6FZ-FC02

D6FZ-FGS Series Dimensions 7

Single-end wire cable

D6FZ-JD3A (L = 3 m)
D6FZ-JD10A (L = 10 m)
D6FZ-JD20A (L = 20 m)

D6FZ-FGS Series Dimensions 8

Double-end connector cable

D6FZ-JD3B (L = 3 m)
D6FZ-JD5B (L = 5 m)
D6FZ-JD10B (L = 10 m)
D6FZ-JD20B (L = 20 m)

D6FZ-FGS Series Dimensions 9
