NJ501-1[]20 / NJ101-[][]20

NJ-series Database Connection CPU Units

NJ501-1[]20 / NJ101-[][]20

The NJ-series Machine Automation Controller supports the Database Connection function. Machine data can be quickly stored in a database by connecting the Controller directly to the database.

(Unit: mm)

CPU Units
NJ[]01-[][][][]

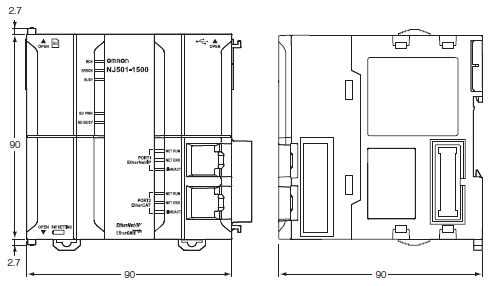

NJ501-1[]20 / NJ101-[][]20 Dimensions 1

Power Supply Units
NJ-PA3001
NJ-PD300

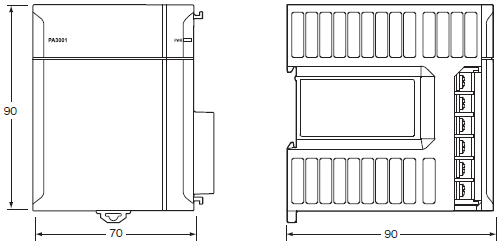

NJ501-1[]20 / NJ101-[][]20 Dimensions 2

End Cover (included with CPU Units)
CJ1W-TER01

NJ501-1[]20 / NJ101-[][]20 Dimensions 3
