A7CN / A7CN-L

Thumbwheel Switch

A7CN / A7CN-L

A Brand New Lineup of A7C Series Compact Thumbwheel Switches

Switches

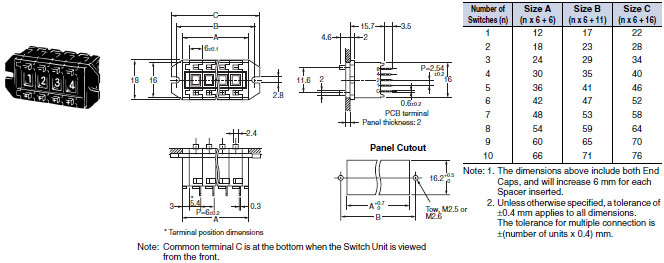

A7CN-106-1
PCB Terminals

A7CN / A7CN-L Dimensions 3 A7CN-106-1_Dim

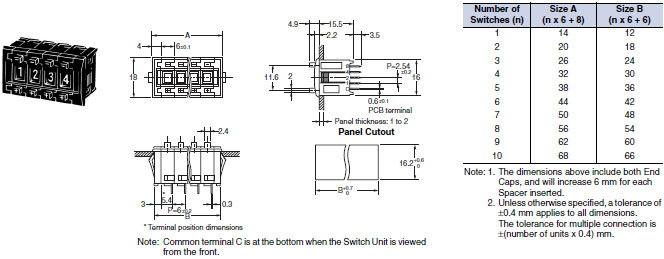

A7CN-206(-1)
PCB Terminals

A7CN / A7CN-L Dimensions 5 A7CN-206(-1)_Dim

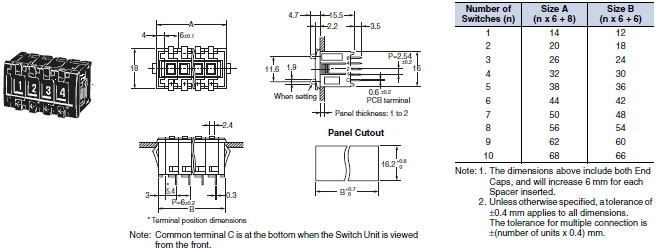

A7CN-L206(-1)
PCB Terminals
Locking Model

A7CN / A7CN-L Dimensions 7 A7CN-L206(-1)_Dim

Accessories (Order Separately)

End Caps for Push-operated Switches

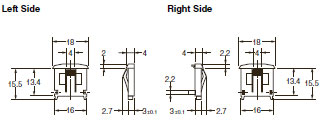

A7CN-1M-1 Screw Mounting

A7CN / A7CN-L Dimensions 9 A7CN-1M-1_Dim

End Caps for Push-operated Switches

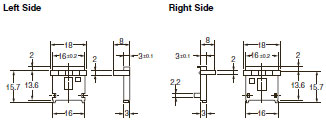

A7CN-2M(-1) Snap-in Mounting

A7CN / A7CN-L Dimensions 10 A7CN-2M(-1)_Dim



Spacers for Push-operated Switches

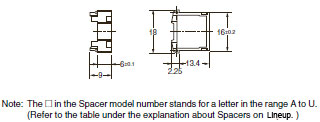

A7CN-1P[]-1
Screw Panel Mounting Model

A7CN / A7CN-L Dimensions 12 A7CN-1P[]-1_Dim

Spacers for Push-operated Switches

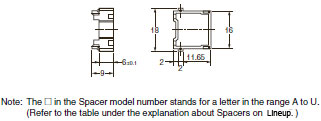

A7CN-2P[](-1)
Snap-in Mounting Model

A7CN / A7CN-L Dimensions 13 A7CN-2P[](-1)_Dim

Note:Note: Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ±0.4mm.
