A7PS / A7PH

Thumbwheel Switch

A7PS / A7PH

Dust-tight, Easy-to-Use, Push-operated Switches with Large Display Characters

last update: October 16, 2012

Note:The [] in the Spacer model number stands for a letter in the range A to U. (Refer to the table under the explanation about Spacers on Lineup.)

Note:(These devices allow Switches to be quickly removed for maintenance and inspection of connectivity, and quickly re-installed.)

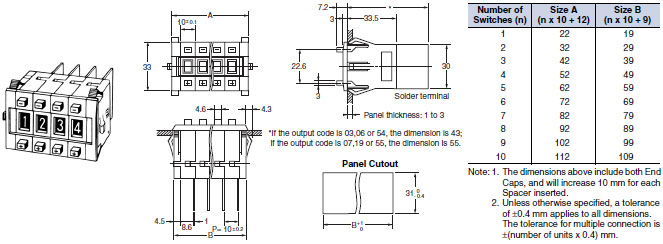

Note:Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ± 0.4 mm.

Insert Connectors with the "UP" arrow pointing up.
