NY51[]-A

Industrial PC Platform NY-series IPC Programmable Multi-Axis Controller

NY51[]-A

High-speed, high-precision motion controller plus PC - in one box

Contact your OMRON representative for details.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: September 1, 2016

(Unit: mm)

Item	Specifications

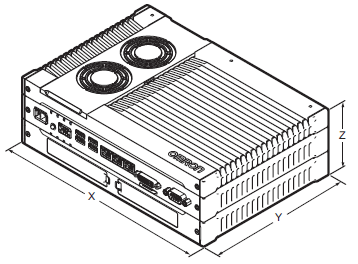

Dimensions	Width X = 282 mm Depth Y = 195 mm. Y = 200 mm including the DVI connectors. Height Z = 88.75 mm
Weight	3.8 kg

Bracket Specifications

The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.

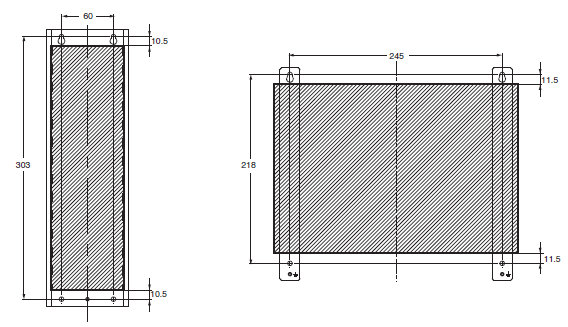

Mounting screw locations for book mount and wall mount orientation:

last update: September 1, 2016
