Guard Lock Safety-door Switch
Die-cast aluminum body Key holding force of 700 N
Related Contents
Application Solutions
last update: February 9, 2018

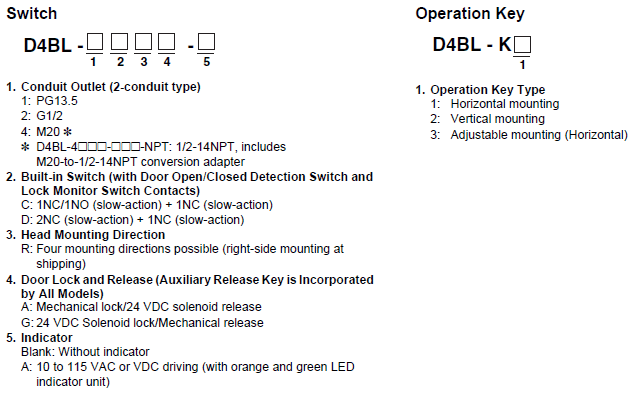

Switches (Operation Keys are sold separately.)
Consult with your OMRON representative when ordering any models that are not listed in this table.
| Lock
method |
Conduit
outlet |
Voltage for
solenoid |
Without
indicator 1NC/1NO+ 1NC (Slow-action) |
With LED
indicator 1NC/1NO+ 1NC (Slow-action) |
Without
indicator 2NC+ 1NC (Slow-action) |
With LED
indicator 2NC+ 1NC (Slow-action) |
|---|---|---|---|---|---|---|
| Mechanical
lock |
PG13.5 | 24 VDC | D4BL-1CRA | D4BL-1CRA-A | D4BL-1DRA | D4BL-1DRA-A |
| G1/2 | D4BL-2CRA | D4BL-2CRA-A | D4BL-2DRA | D4BL-2DRA-A | ||
| M20 | D4BL-4CRA | D4BL-4CRA-A | D4BL-4DRA | D4BL-4DRA-A | ||
| Solenoid
lock |
Pg 13.5 | 24 VDC | D4BL-1CRG | D4BL-1CRG-A | D4BL-1DRG | D4BL-1DRG-A |
| G1/2 | D4BL-2CRG | D4BL-2CRG-A | D4BL-2DRG | D4BL-2DRG-A | ||
| M20 | D4BL-4CRG | D4BL-4CRG-A | D4BL-4DRG | D4BL-4DRG-A |

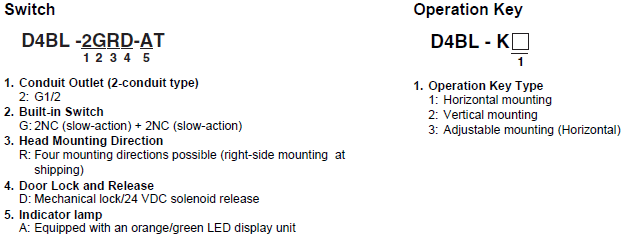

| Lock method | Conduit outlet | Voltage for solenoid | With LED indicator
2NC+ 2NC (Slow-action) |
|---|---|---|---|
| Mechanical lock | G1/2 | 24 VDC | D4BL-2GRD-AT |
Operation Keys
| Mounting type | Model | |
|---|---|---|
| Horizontal mounting |  |
D4BL-K1 |
| Vertical mounting |  |
D4BL-K2 |
| Adjustable mounting |  |
D4BL-K3 |
