DC Axial Fans
last update: August 1, 2023

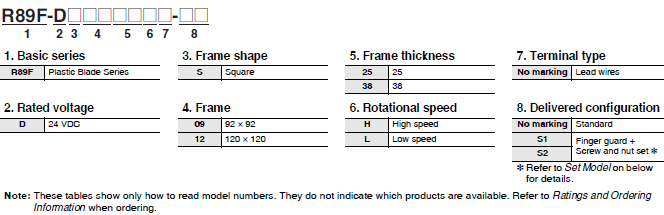

Series | Size (mm) | Speed | Model |
---|---|---|---|
R89F-D series | 92 × 92 × t25 | High | R89F-DS0925H |
92 × 92 × t25 | Low | R89F-DS0925L | |
120 × 120 × t25 | High | R89F-DS1225H | |
120 × 120 × t25 | Low | R89F-DS1225L | |
120 × 120 × t38 | High | R89F-DS1238H | |
120 × 120 × t38 | Low | R89F-DS1238L |
Name | Model |
---|---|
Finger Guard | R87F-FG[] |
Filter | R87F-FL[](S) |
Note: Mounting screws are not provided.
Model | Set Contents |
---|---|
R89F-DS0925H-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS0925L-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS1225H-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS1225L-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS1238H-S1 | Fan, Finger guard × 1, M4 Screw (55 mm) × 4 and nut set × 4 |
R89F-DS1238L-S1 | Fan, Finger guard × 1, M4 Screw (55 mm) × 4 and nut set × 4 |
R89F-DS0925H-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS0925L-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS1225H-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS1225L-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
R89F-DS1238H-S2 | Fan, Finger guard × 2, M4 Screw (55 mm) × 4 and nut set × 4 |
R89F-DS1238L-S2 | Fan, Finger guard × 2, M4 Screw (55 mm) × 4 and nut set × 4 |
Model | Rated
voltage |
Permitted
voltage fluctuation range |
Fre-
quency [Hz] |
Rated
current [A] * |
Rated
input [W] * |
Rated
rotational speed [r/min-1] * |
Maximum
flow rate [m3/min] * |
Maximum
static pressure [Pa] * |
Noise
[dB] * |
---|---|---|---|---|---|---|---|---|---|
R89F-DS0925H | 24 VDC | 12 to 27.6 V | --- | 0.15 | 3.6 | 3550 | 1.66 | 56.1 | 39 |
R89F-DS0925L | 24 VDC | 12 to 27.6 V | --- | 0.08 | 1.92 | 2650 | 1.24 | 32.2 | 30 |
* An asterisk (*) indicates a nominal value.
Model | Rated
voltage |
Permitted
voltage fluctuation range |
Fre-
quency [Hz] |
Rated
current [A] * |
Rated
input [W] * |
Rated
rotational speed [r/min-1] * |
Maximum
flow rate [m3/min] * |
Maximum
static pressure [Pa] * |
Noise
[dB] * |
---|---|---|---|---|---|---|---|---|---|
R89F-DS1225H | 24 VDC | 20.4 to 27.6 V | --- | 0.47 | 11.28 | 4100 | 3.68 | 120 | 51 |
R89F-DS1225L | 24 VDC | 12 to 27.6 V | --- | 0.17 | 4.08 | 2850 | 2.5 | 64 | 40 |
* An asterisk (*) indicates a nominal value.
Model | Rated
voltage |
Permitted
voltage fluctuation range |
Fre-
quency [Hz] |
Rated
current [A] * |
Rated
input [W] * |
Rated
rotational speed [r/min-1] * |
Maximum
flow rate [m3/min] * |
Maximum
static pressure [Pa] * |
Noise
[dB] * |
---|---|---|---|---|---|---|---|---|---|
R89F-DS1238H | 24 VDC | 20.4 to 27.6 V | --- | 0.5 | 12 | 3600 | 3.88 | 135 | 49 |
R89F-DS1238L | 24 VDC | 14 to 27.6 V | --- | 0.11 | 2.64 | 1950 | 2.1 | 39.6 | 32 |
* An asterisk (*) indicates a nominal value.
Size | Model number | Weight (g) |
---|---|---|
150 dia. | R87F-FG150 | Approx. 58 |
120 × 120 | R87F-FG120 | Approx. 45 |
92 × 92 | R87F-FG90 | Approx. 25 |
80 × 80 | R87F-FG80 | Approx. 20 |
Axial Fans | Set model | |||||||
---|---|---|---|---|---|---|---|---|
Model | Contents | |||||||
Finger Guard | Hexagonal nuts | Screws | ||||||
size | Qty | Model | size | Qty | size | Qty | ||
R87F-A[]A83 | R87F-SET8025 | 80 x 80 | 1 | R87F-FG80 | M4 | 4 | M4 x L38 | 4 |
R87T-A[]A83 | ||||||||
R87F-A[]A85 | R87F-SET8038 | 80 x 80 | 1 | R87F-FG80 | M4 | 4 | M4 x L50 | 4 |
R87T-A[]A85 | ||||||||
R87F-A[]A93 | R87F-SET9025 | 92 x 92 | 1 | R87F-FG90 | M4 | 3 | M4 x L38 | 3 |
M3 | 1 | M3 x L38 | 1 | |||||
R87F-A[]A13 | R87F-SET1225 | 120 x 120 | 1 | R87F-FG120 | M4 | 4 | M4 x L38 | 4 |
R87F-A[]A15 | R87F-SET1238 | 120 x 120 | 1 | R87F-FG120 | M4 | 4 | M4 x L50 | 4 |
R87T-A[]A15 | ||||||||
R87T-A[]A15H-WR | ||||||||
R87T-A[]A05 | R87F-SET1538 | 150 dia. | 1 | R87F-FG150 | M4 | 2 | M4 x L50 | 2 |
R87T-A[]A07 | R87F-SET1555 | 150 dia. | 1 | R87F-FG150 | M4 | 2 | M4 x L70 | 2 |
Note: Finger Guards reduce the flow rate by approximately 2% to 5%.
Size | Model number | Weight (g) |
---|---|---|
120 × 120 | R87F-FL120 | Approx. 43 |
92 × 92 | R87F-FL90 | Approx. 30 |
80 × 80 | R87F-FL80 | Approx. 21 |
120 × 120 | R87F-FL120S | Approx. 19 |
Note: The filter contains one medium.
Size | Model number |
---|---|
120 × 120 | R87F-FL120-M120 |
92 × 92 | R87F-FL90-M90 |
80 × 80 | R87F-FL80-M80 |
AC Axial Fan | Filter | ||
---|---|---|---|
Size | Model | Plastic | Aluminum |
150 dia. | R87T-A[]A0 Series | --- | --- |
120 × 120 | R89F-DS1225[] series | R87F-FL120 | R87F-FL120S |
R89F-DS1238[] series | |||
R89F-MS1238HP | |||
R87F-A[]A1 Series
R87T-A[]A1 Series |
|||
92 × 92 | R87F-A[]A9 Series | R87F-FL90 | --- |
80 × 80 | R87F-A[]A8 Series
R87T-A[]A8 Series |
R87F-FL80 | --- |
