F3SP-B1P

Control Unit

F3SP-B1P

Less Wiring Required with Safety Light Curtain

last update: January 15, 2019

(Unit: mm)

Main Unit

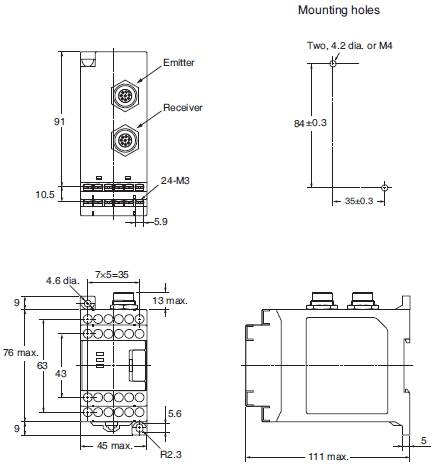

Control Unit (F3SP-B1P)

F3SP-B1P Dimensions 2

Accessories (Sold separately)

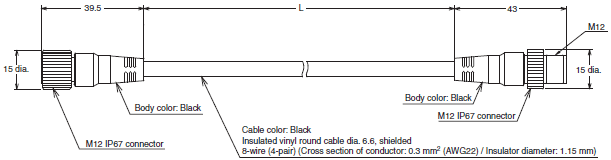

Double-Ended Cable for Emitter (F39-JD[]B-L, sold separately)

F3SP-B1P Dimensions 4

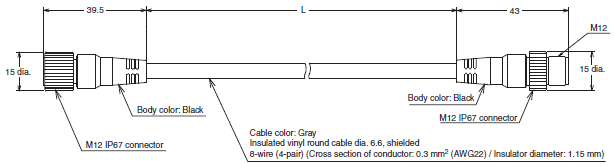

Double-Ended Cable for Receiver (F39-JD[]B-D, sold separately)

F3SP-B1P Dimensions 5

F3SP-B1P Dimensions 6

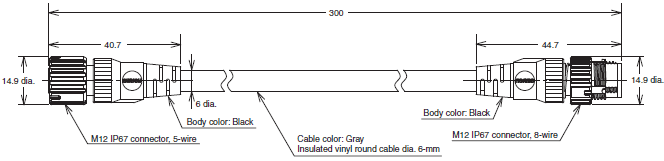

Emitter Adapter Cable (F39-JGR3M-B58-L, sold separately)

F3SP-B1P Dimensions 7

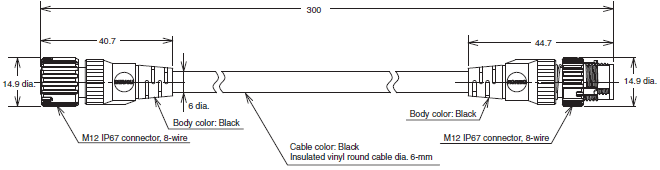

Receiver Adapter Cable (F39-JGR3M-B88-D, sold separately)

F3SP-B1P Dimensions 8

last update: January 15, 2019
