E2EQ NEXT

Proximity Sensor DC 3-wire/DC 2-wire

E2EQ NEXT

Enables easier and standardized designs previously not possible with fluororesin coating models

BASIC Model
PREMIUM Model

last update: January 5, 2023

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

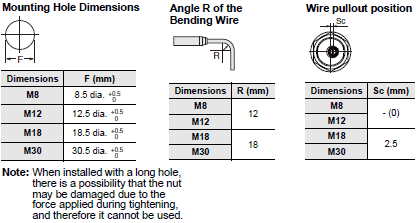

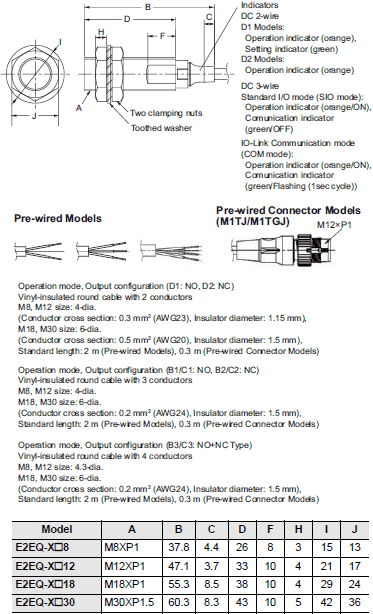

BASIC Model

E2EQ NEXT Series (Spatter-resistant, Double distance/Single distance model)

DC 3-wire/DC 2-wire

Pre-wired Model/Pre-wired Connector Model

E2EQ NEXT Dimensions 5

Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)

E2EQ NEXT Dimensions 6

E2EQ NEXT Dimensions 7

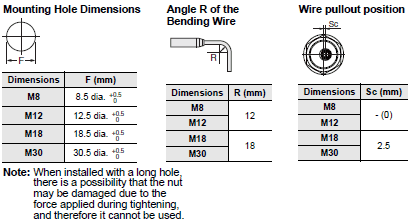

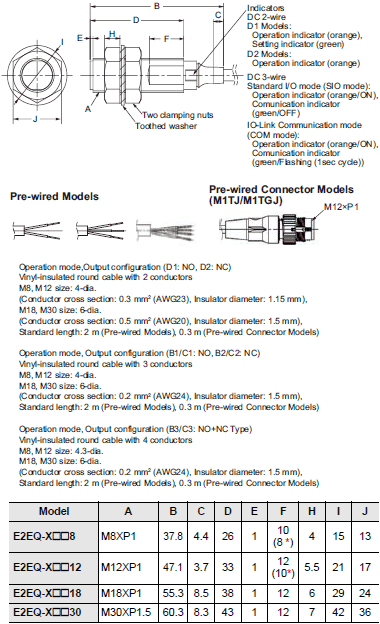

PREMIUM Model

E2EQ NEXT Series (Spatter-resistant, Triple distance model)

DC 3-wire/DC 2-wire

Pre-wired Model/Pre-wired Connector Model

E2EQ NEXT Dimensions 11

* If using the E2EQ-X[]D[]8, E2EQ-X[]D[]12, refer to ( ) dimensions.

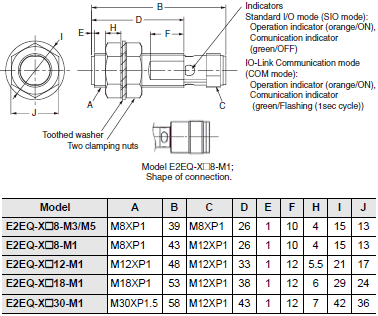

Connector Models (M12 Connector, M8 (4-pin) Connector and M8 (3-pin) Connector)

Note: DC 3-wire only

E2EQ NEXT Dimensions 12

E2EQ NEXT Dimensions 13

last update: January 5, 2023
