K7TM

Heater Condition Monitoring Device

K7TM

Predictive maintenance by monitoring heater condition

(Unit: mm)

K7TM

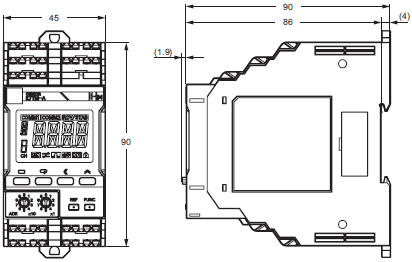

K7TM Dimensions 1

Special CT (Current Transformer)

K6CM-CICB005-C
K6CM-CICB005

K7TM Dimensions 3

K6CM-CICB025-C
K6CM-CICB025

K7TM Dimensions 4

K6CM-CICB100-C
K6CM-CICB100

K7TM Dimensions 5

K6CM-CICB200-C
K6CM-CICB200

K7TM Dimensions 6

K6CM-CICB400-C
K6CM-CICB400
K6CM-CICB600

K7TM Dimensions 7

CT-supplied cable *

K7TM Dimensions 8

* The CT-supplied cable is attached to the CT.

Note: 1. The "-C" at the end of the special CTs refer to the models compliant with UL certification. Models without "-C" can
             also be used if UL certification is not required. The ratings and specifications are common to all of them.
         2. To comply with UL certification for the special CT, refer to Conformance to Safety Standards (Data Sheet).
         3. The CT input terminals of the K7TM can be connected in either direction of the special CT regardless of polarity.

Optional Products for DIN Track Mounting

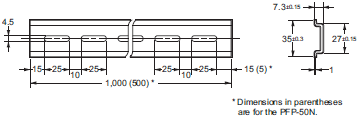

DIN Tracks

PFP-100N
PFP-50N

K7TM Dimensions 11

End Plate

PFP-M

K7TM Dimensions 12
