Long-distance Photoelectric Sensor with Built-in Amplifier
Line of Long-distance Photoelectric Sensors for Large Workpieces Includes Retroreflective Models with Sensing Distance of 10 m and Distance Settings Up to 2 m.
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors
Retro-reflective Models

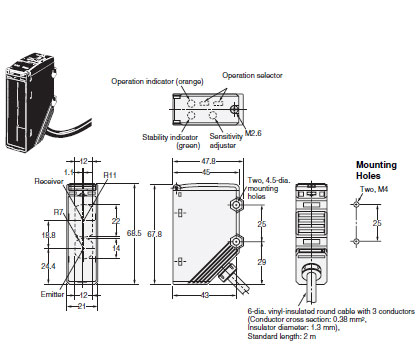

Pre-wired Model E3G-R13

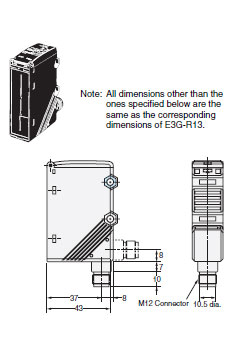

Standard Connector Model E3G-R17

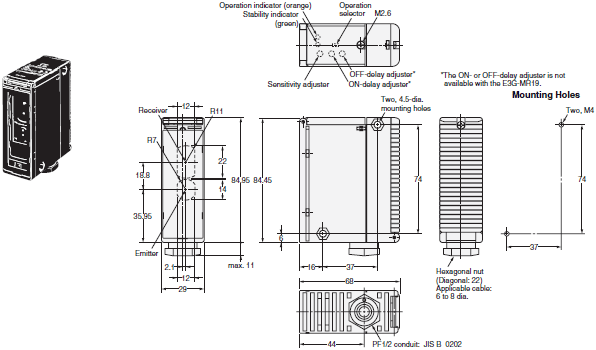

Terminal Block Models E3G-MR19 E3G-MR19T
Distance-setting Models

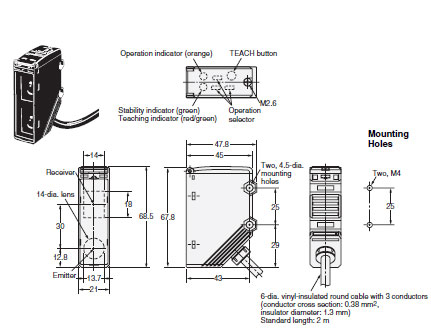

Pre-wired Model E3G-L73
Standard Connector Model E3G-L77
Terminal Block Models E3G-ML79 E3G-ML79T
Accessories (Order Separately)
Terminal Protection Cover for Side-pullout Cable
E39-L129
Note: 1. The cover is provided with a rubber bushing and cap to prevent the cable from being pulled out vertically.
2. Refer to Data Sheet for the mounting method of the product.

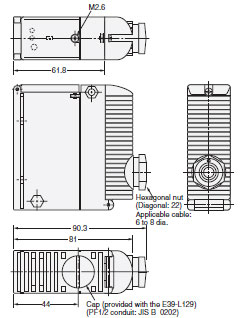

Terminal Protection Cover for Side-pullout Cable (Example: E3G-MR19)
