XS2

Round Water-resistant Connectors (M12 Threads)

XS2

Water- and Environment-resistive FA Connectors Save Wiring and Maintenance Effort

last update: March 3, 2022

Rated current	4 A
Rated voltage	250 VAC/VDC
Contact resistance (Connector)	40 mΩ max. (20 mV max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (Connector)	1,500 VAC for 1 min (leakage current: 1 mA max.)
Degree of protection	IP67 (IEC60529)
Insertion tolerance	200 times
Cable holding strength	Cable diameter: 6 mm 98 N/15 s 4 to 5 mm 49 N/15 s 3 mm 29 N/15 s
Ambient operating temperature range	- 25°C to 70°C *
Ambient humidity range	20% to 85%

*Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from being
broken when bending it.

Model		XS2F/H/W	XS2F-LED	XS2M/R/P	XS2C/G
Contacts		Copper alloy/Gold plating		Brass
Thread bracket		Copper alloy/Nickel plated *
Pin block		PBT resin		PA resin	PBT resin
O-ring		Rubber
Cover		PBT resin	TPU resin	---	PBT resin
Cable	Fire-retardant, PVC robot cable	UL AWM2464 CL3, 6 mm dia. AWG20 Sheath color: light gray	---	---	---
	Non-polar DC Connectors with Standard PVC cable	6 mm dia. AWG20 Sheath color: light gray	---	---	---
	E2E models with conventional connector pin with Fireretardant, PVC robot cable	UL AWM2464 CL3, 6 mm dia. AWG20 Sheath color: light gray	---	---	---
	Standard PVC cable up to 105°C	6 mm dia. AWG20 Sheath color: light gray	---	---	---
	Spatter-resistant cable	6.6 mm dia. AWG20 Sheath color: blue	---	---	---
	Standard PVC cable (XS2F-LED)	---	UL AWM2464 5.0 mm dia. (3 conductors) 5.4 mm dia. (4 conductors) 0.34 mm² Sheath color: black	---	---

* The T-joint of the XS2R is aluminum/white.

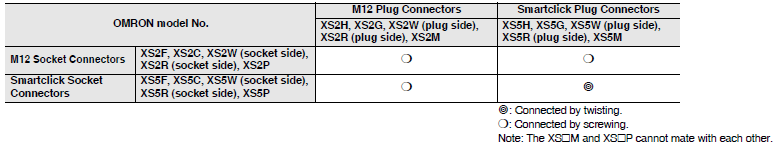

Note: The AC and DC mating section forms are different as shown here and therefore cannot be connected together.
