G6B-4[][]ND

Terminal Relay

G6B-4[][]ND

Compact Terminal Relay with 4 Independent Outputs

(Unit: mm)

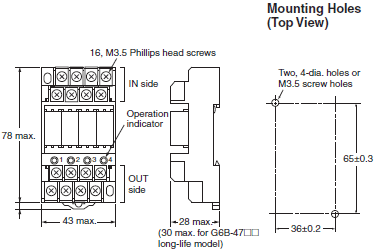

Philip Screw Terminals

G6B-4BND
G6B-47BND
G6B-48BND

G6B-4[][]ND Dimensions 2

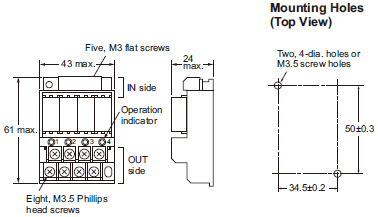

Flat Screw Terminal

G6B-4FB1ND

G6B-4[][]ND Dimensions 4

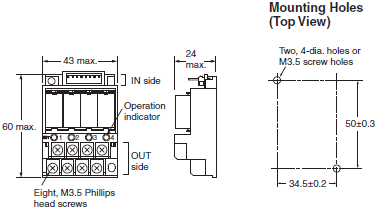

Connector Terminal

G6B-4FPND

G6B-4[][]ND Dimensions 6

Accessories (Order Separately)

Connection Socket (Can be Purchased Individually)

P6BF-4BND (with operation indicator)

G6B-4[][]ND Dimensions 9

Short Bars

G6B-4-SB
Short Bars are used to wire crossovers for common terminals for coils or contacts.

G6B-4[][]ND Dimensions 10

Relay Removal Tool, Short Bar and Terminal Cover (Order Separately)

Refer to Options for the G6B-4CB, G6B-4[][]ND, and G3S4 on Data Sheet.

Relay Mounting Products (Order Separately)

Refer to Common Sockets/Products Related DIN Tracks.
