H3BA-N

Solid-state Timer

H3BA-N

Solid-state Timer with Valuable Multiple-time Ranges and Multiple-operating Modes

last update: August 28, 2013

(Unit: mm)

H3BA-N

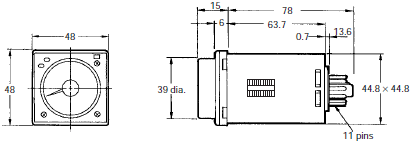

H3BA-N Dimensions 1

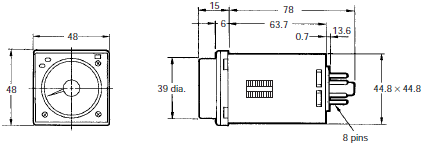

H3BA-N8H

H3BA-N Dimensions 2

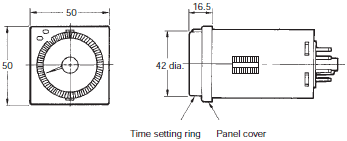

Dimensions with Set Ring

H3BA-N Dimensions 3

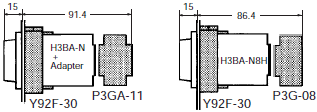

Dimensions with Y92F-30 Flush Mounting Adapter

H3BA-N Dimensions 4

Note: The mounting panel thickness should be 1 to 5 mm.

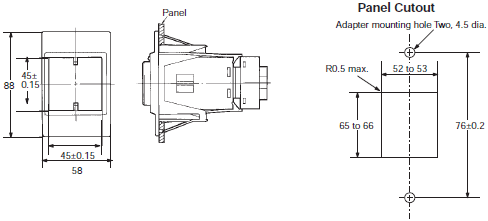

Dimensions with Y92F-70 Flush Mounting Adapter

H3BA-N Dimensions 5

Dimensions with Y92F-71 Flush Mounting Adapter

H3BA-N Dimensions 6

Note: The mounting panel thickness should be 1 to 3.2 mm.

Track Mounting

H3BA-N Dimensions 7

* These dimensions vary with the kind of DIN track (reference value).

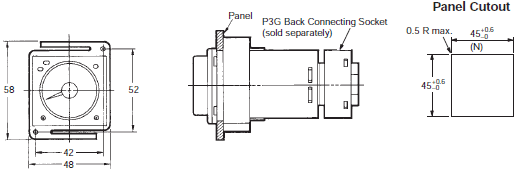

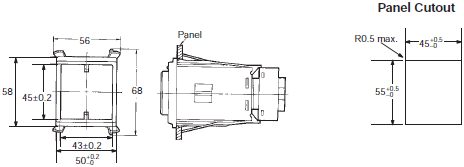

Flush Mounting

H3BA-N Dimensions 8

Accessories (Order Separately)

Track Mounting/Front Connecting Socket

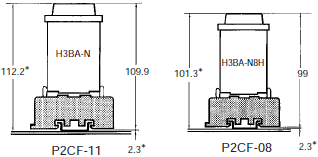

P2CF-08

H3BA-N Dimensions 11

P2CF-11

H3BA-N Dimensions 12

Back Connecting Socket

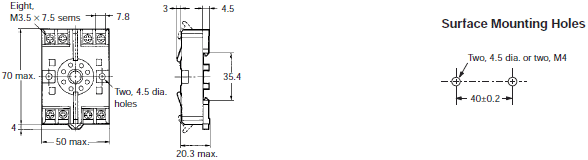

P3G-08

H3BA-N Dimensions 14

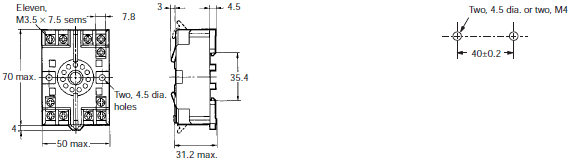

P3GA-11

H3BA-N Dimensions 15

Mounting Track

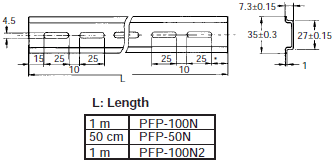

PFP-100N, PFP-50N

H3BA-N Dimensions 17

PFP-100N2

H3BA-N Dimensions 18

End Plate

PFP-M

H3BA-N Dimensions 20

Spacer

PFP-S

H3BA-N Dimensions 22
