Industrial Automation

R88M-KE, R88D-KP

G5-series Pulse Train Input Type AC Servomotors/Servo Drives

R88M-KE, R88D-KP

High-performance Servo Optimal for positioning Application.

last update: May 30, 2014

High Speed and High Precision

Industry Top-class Tracking Performance

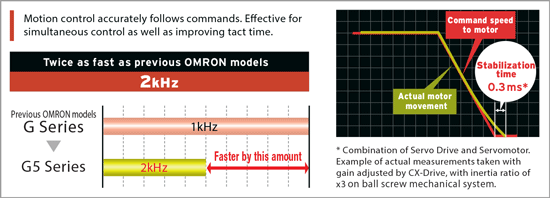

Speed Response Frequency of 2 kHz

Speed response is representative of servo system characteristics. In the G5, the industry’s fastest response has been achieved at 2 kHz.

By improving the speed response by twice compared to previous OMRON models, the stabilization time has been shortened and this contributes

to tact time reduction.

Reduced Tact Time with Higher Speed

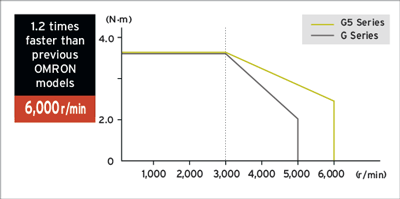

Maximum rotation speed : 6,000 r/min*

The maximum rotation speed of R88M-series Servomotors has increased to 6,000 r/min, resulting in high-speed positioning that can reduce tact time.

*Applicable to 100 V/200 V models with 750 W or less.

Best Positioning Accuracy

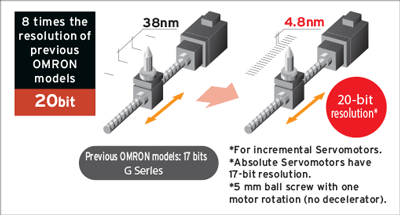

Featuring a 20-bit high-resolution incremental encoder

High-precision positioning can be achieved with the built-in encoder, 8 times the resolution of previous OMRON models at 20 bits.

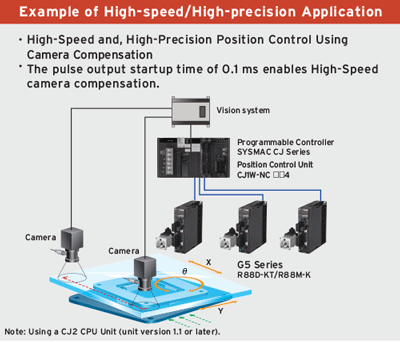

Application Example

High-speed and High-precision Positioning

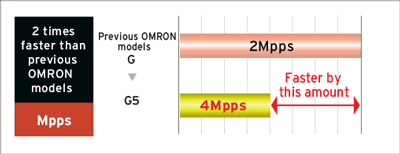

Pulse input response frequency: 4 Mpps

The Servo Drive response to command pulses is 4 Mpps, twice that of previous OMRON models. Response delays are thus reduced enabling high-speed and high-precision positioning.

Ideal for Applications That Require High Accuracy

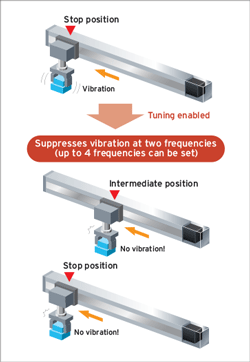

Improved vibration control function

With the vibration control function, if the tip of the device is vibrating, the vibration frequency can be set to remove the vibration. It can also be used to suppress vibration resulting from starting and stopping the device, allowing precise movement.
