K8DT-AW

Single-phase Overcurrent/Undercurrent Relay

K8DT-AW

Our Value Design Products Increase the Value of Your Control Panels. Detect errors in motors and other equipment through current changes. Monitor for overcurrents and undercurrents simultaneously with one Relay.

(Unit: mm)

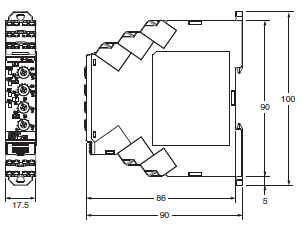

Single-phase Overcurrent/Undercurrent Relay

K8DT-AW1
K8DT-AW2
K8DT-AW3

K8DT-AW Dimensions 1

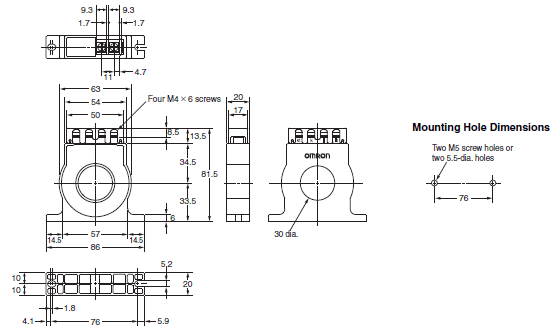

OMRON CT

K8AC-CT200L

K8DT-AW Dimensions 2

Note: The OMRON Current Transformer (CT) is designed to be used with the K8DT-AW3. Use terminals k and l for connections. (Terminals kt and lt are not used.)

Options (Order Separately)

Front Cover

Y92A-D1A

K8DT-AW Dimensions 5

Optional Parts for DIN Track Mounting

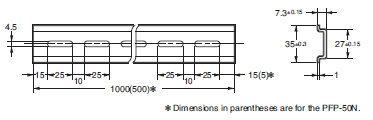

DIN Tracks

PFP-100N
PFP-50N

K8DT-AW Dimensions 7
