TM S Series

OMRON TM Collaborative Robot, S Series

TM S Series

S Series Collaborative Robot (Cobot) for assembly, palletizing, inspection, logistics and many other applications

last update: October 1, 2024

(Unit: mm)

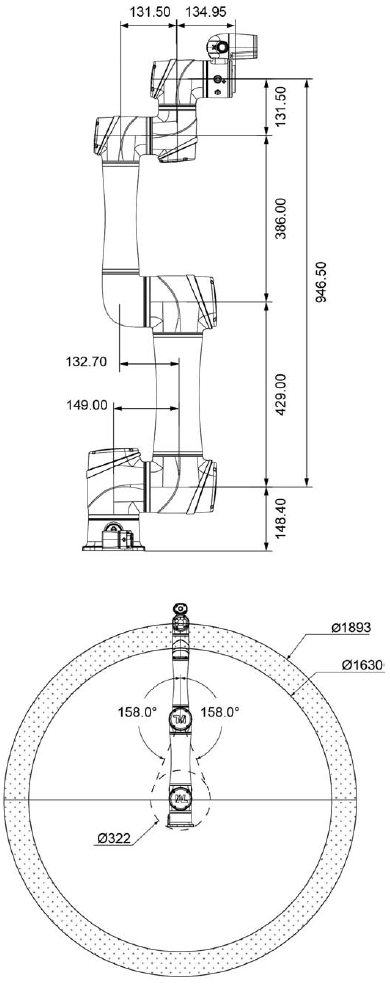

TM7S/TM7S-X/TM7S-M *

TM S Series Dimensions 1

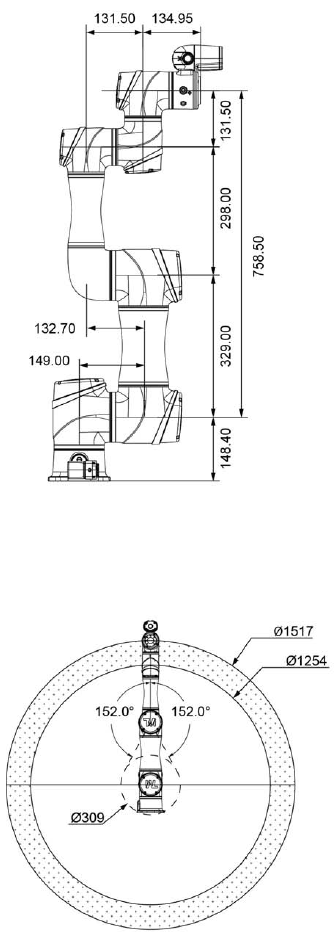

TM5S/TM5S-X/TM5S-M *

TM S Series Dimensions 2

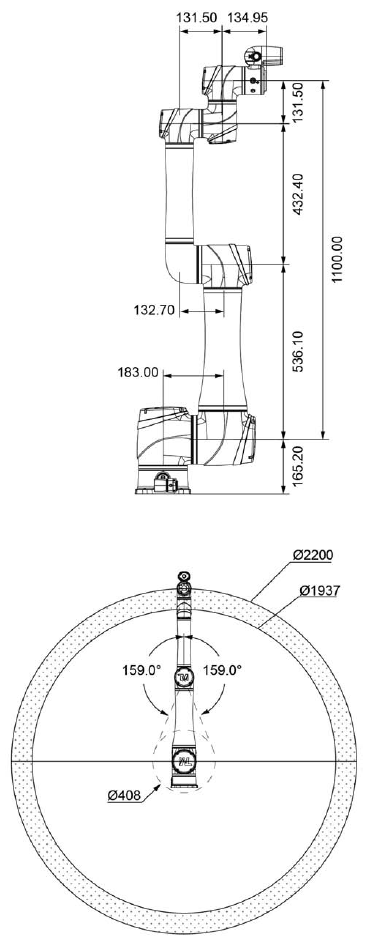

TM12S/TM12S-X/TM12S-M *

TM S Series Dimensions 3

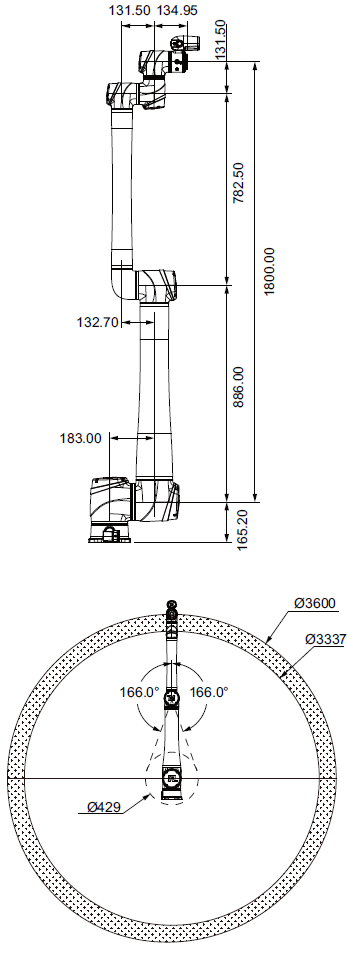

TM14S/TM14S-X/TM14S-M *

TM S Series Dimensions 4

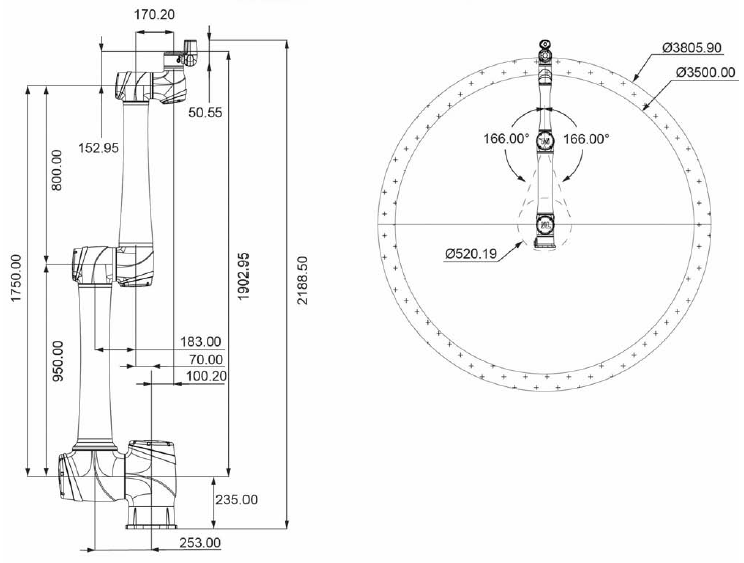

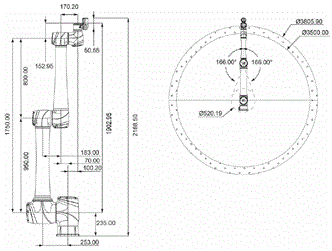

TM25S/TM25S-X/TM25S-M *

TM S Series Dimensions 5

* Dimensions do not include the camera. Refer to the Camera Flange dimensions for more information.

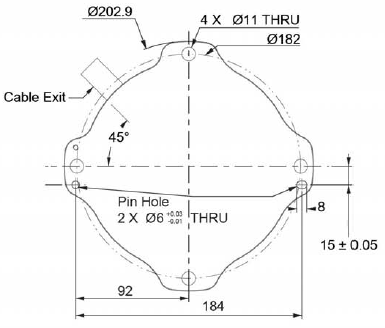

Footprint (TM5S/7S Models)

TM S Series Dimensions 7

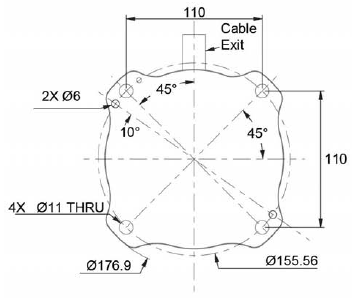

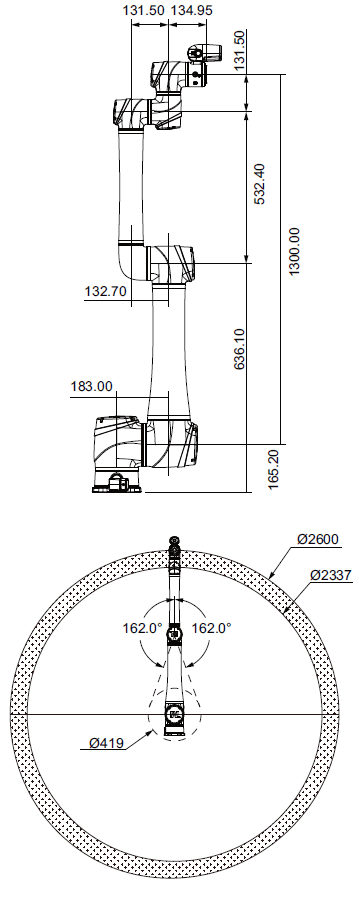

Footprint (TM12S/14S Models)

TM S Series Dimensions 8

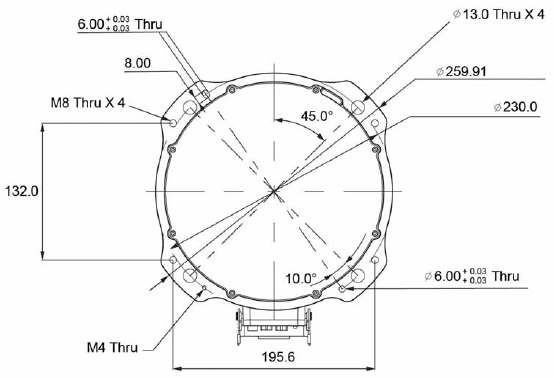

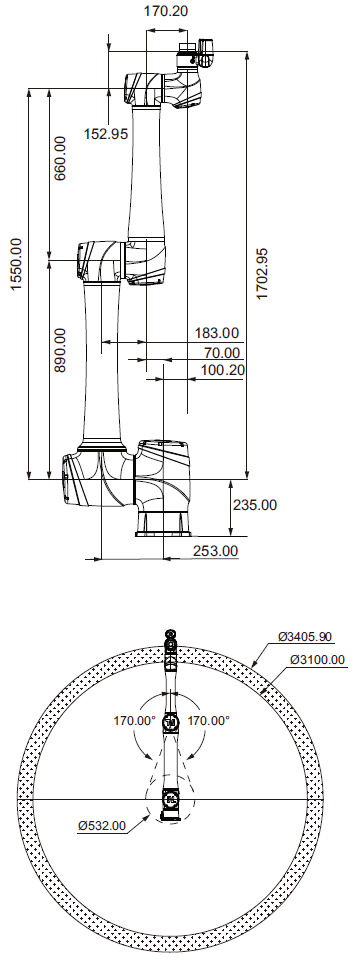

Footprint (TM25S Models)

TM S Series Dimensions 9

TM5S/7S/12S/14S Control Box (AC)

TM S Series Dimensions 10

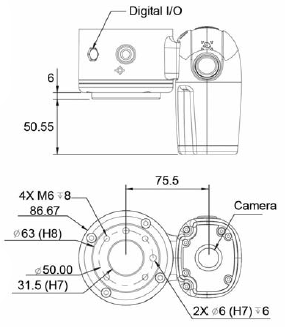

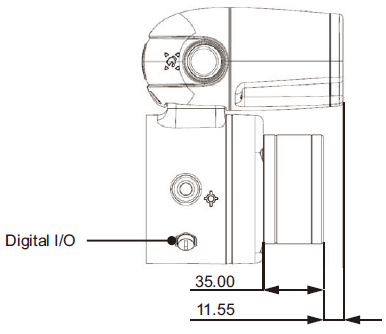

Camera Flange

TM S Series Dimensions 11

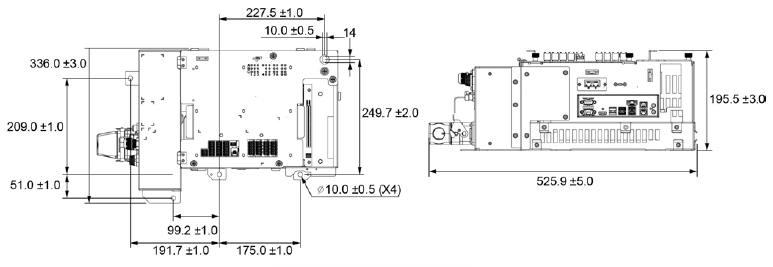

TM5S/7S/12S/14S Control Box (DC)

TM S Series Dimensions 12

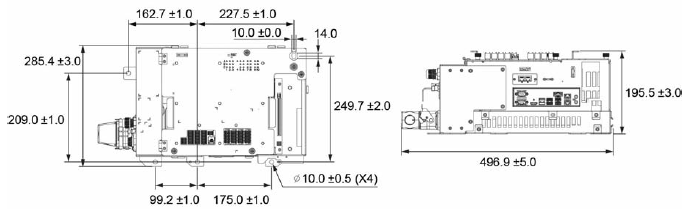

TM5S/7S/12S/14S Control Box (DC SEMI)

TM S Series Dimensions 13

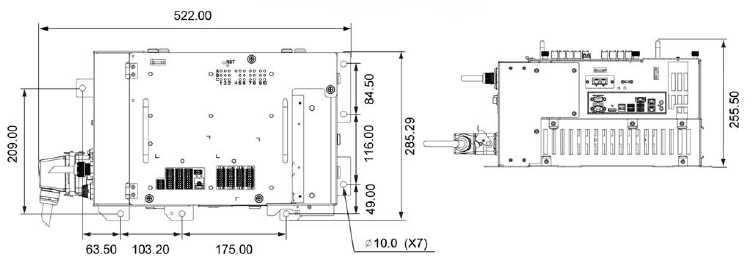

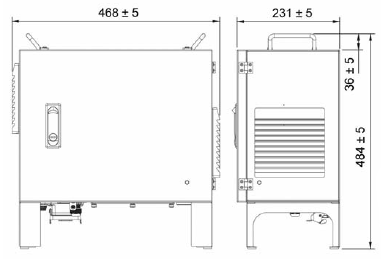

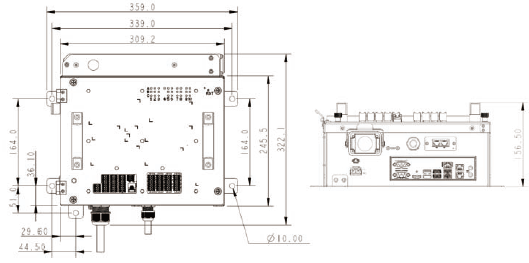

TM25S Control Box (AC)

TM S Series Dimensions 14

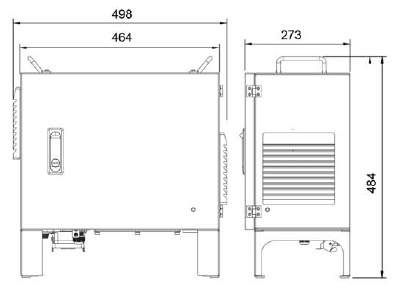

TM25S Control Box (DC)

TM S Series Dimensions 15
