Industrial Automation
3G3MX2-V2
Multi-function Compact Inverter
Provides rich features, including simple positioning and PM motor control, for a variety of applications
Related Contents
Application Solutions
last update: November 1, 2023
(Unit: mm)
Inverter MX2-series V2 type

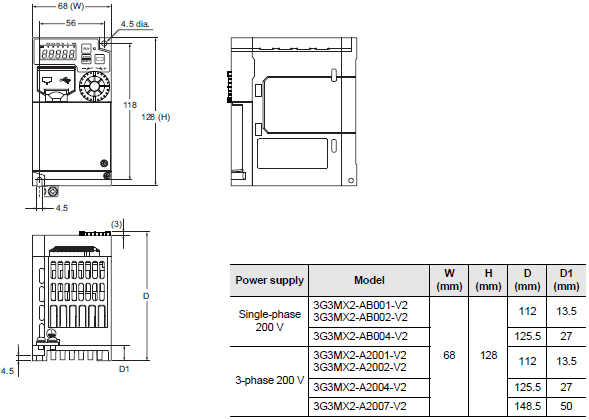

3G3MX2-AB001-V2
3G3MX2-AB002-V2
3G3MX2-AB004-V2
3G3MX2-A2001-V2
3G3MX2-A2002-V2
3G3MX2-A2004-V2
3G3MX2-A2007-V2

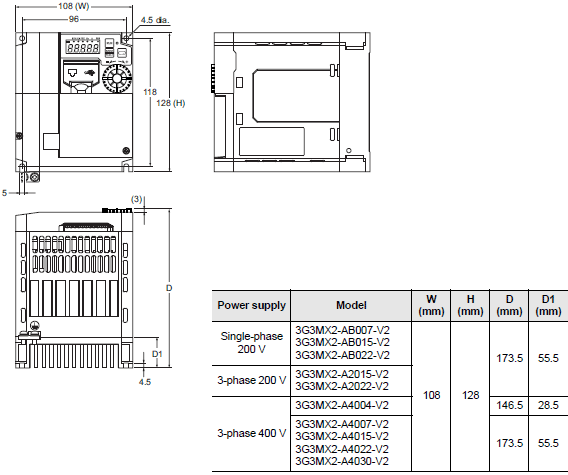

3G3MX2-AB007-V2
3G3MX2-AB015-V2
3G3MX2-AB022-V2
3G3MX2-A2015-V2
3G3MX2-A2022-V2
3G3MX2-A4004-V2
3G3MX2-A4007-V2
3G3MX2-A4015-V2
3G3MX2-A4022-V2
3G3MX2-A4030-V2

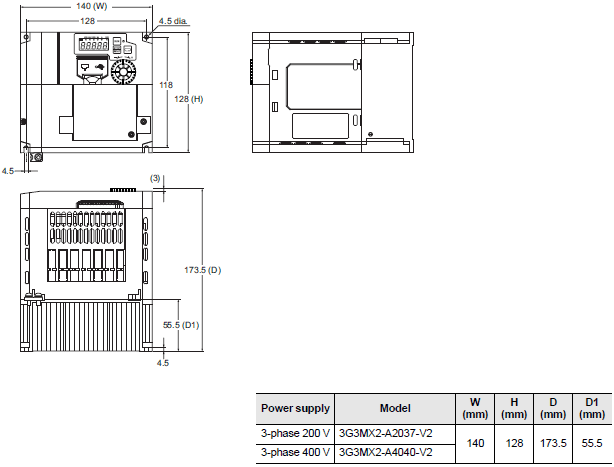

3G3MX2-A2037-V2
3G3MX2-A4040-V2

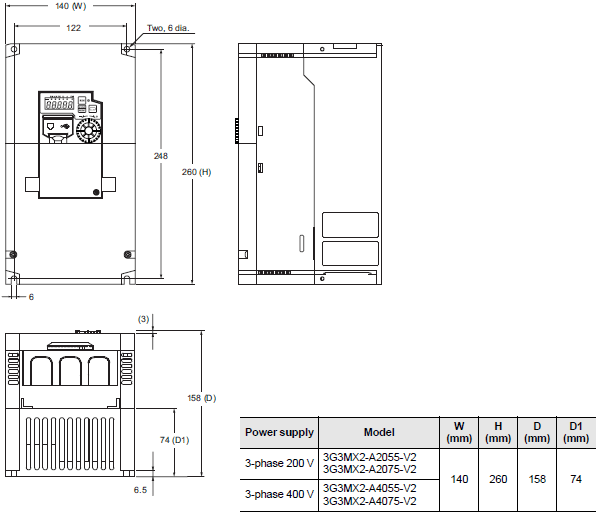

3G3MX2-A2055-V2
3G3MX2-A2075-V2
3G3MX2-A4055-V2
3G3MX2-A4075-V2
3G3MX2-A2110-V2
3G3MX2-A4110-V2
3G3MX2-A4150-V2

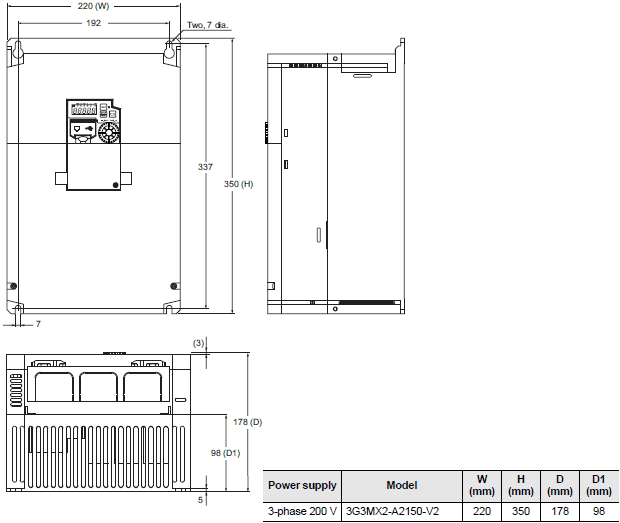

3G3MX2-A2150-V2

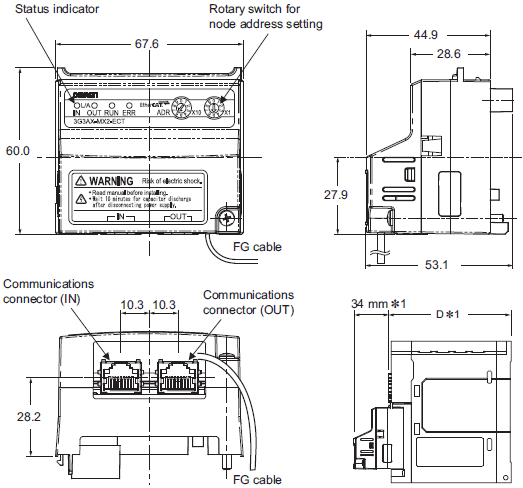

MX2-Series EtherCAT Communication Unit 3G3AX-MX2-ECT
External Dimensions
*1. With the EtherCAT Communication Unit mounted, dimension D of the inverter increases by 34 mm.
(Dimension D of the inverter varies depending on the capacity. For details, refer to the Multi-function Compact Inverter
3G3MX2-V2 User’s Manual (Cat. No. I666).
Options

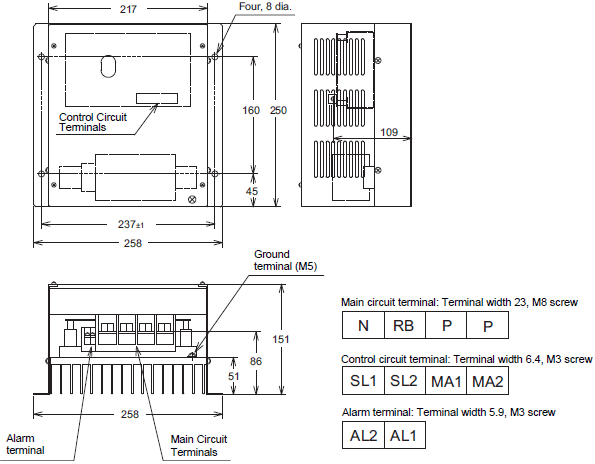

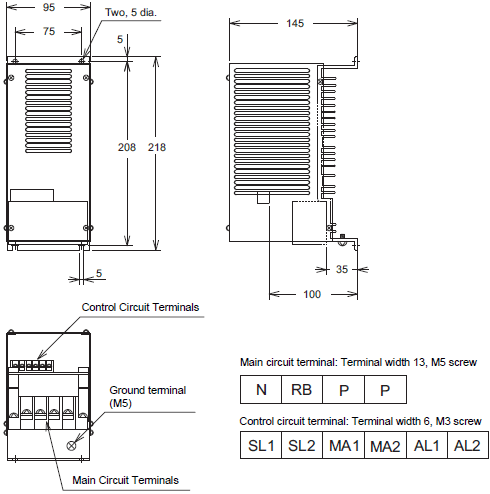

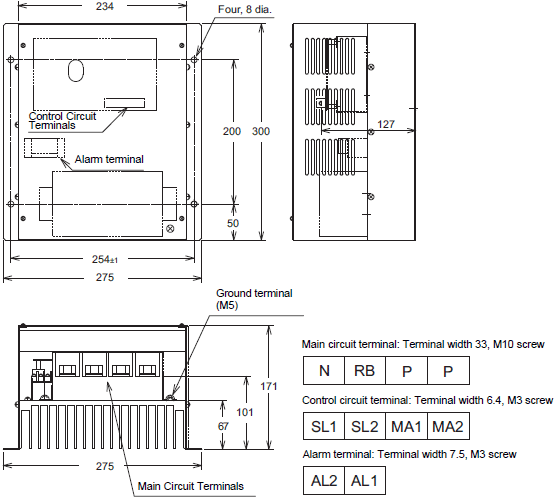

Regenerative Braking Unit (3G3AX-RBU[][])

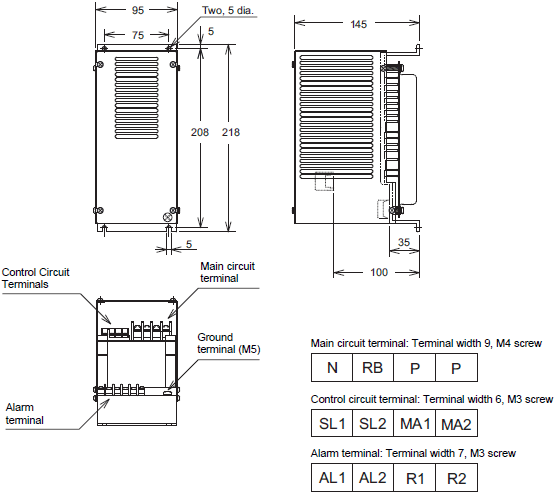

3G3AX-RBU21/RBU22/RBU41
3G3AX-RBU23
3G3AX-RBU24

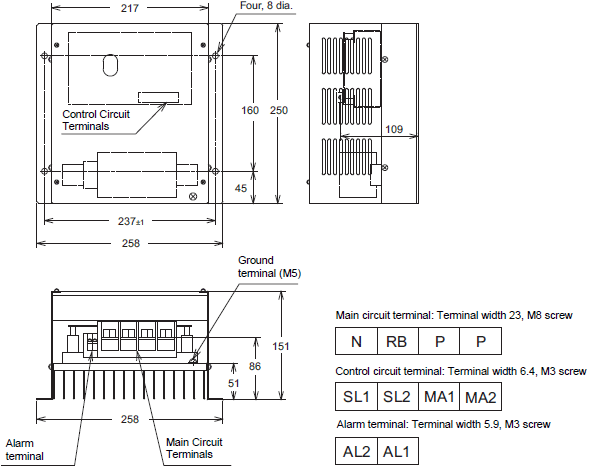

3G3AX-RBU42
3G3AX-RBU43

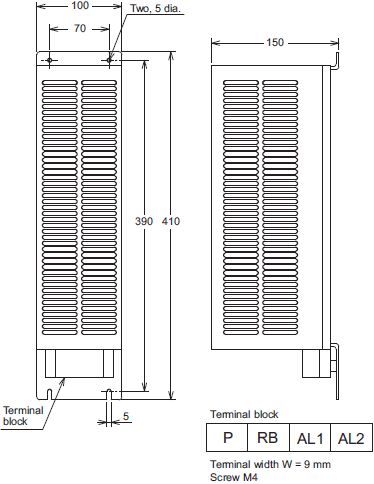

Braking Resistor (3G3AX-RBA/RBB/RBC[][][][])

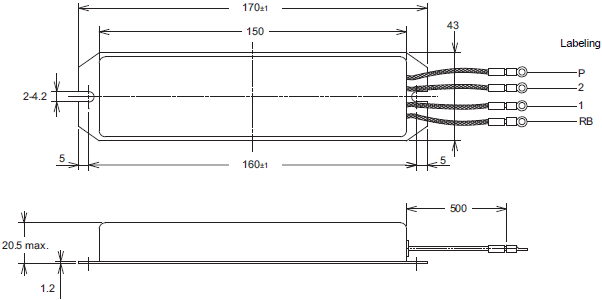

3G3AX-RBA[][][][]

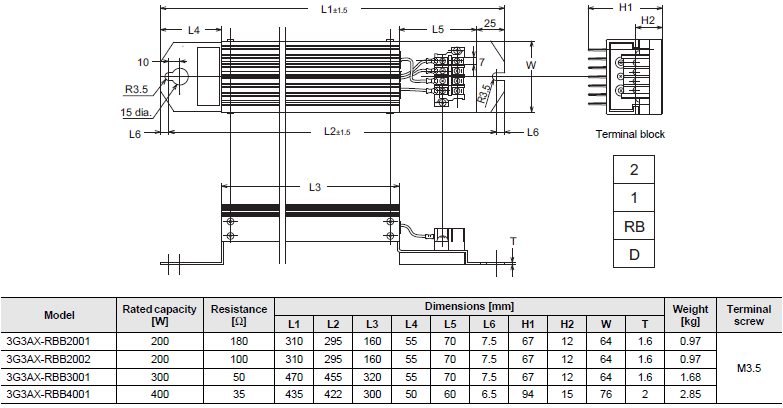

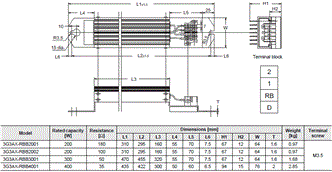

3G3AX-RBB[][][][]

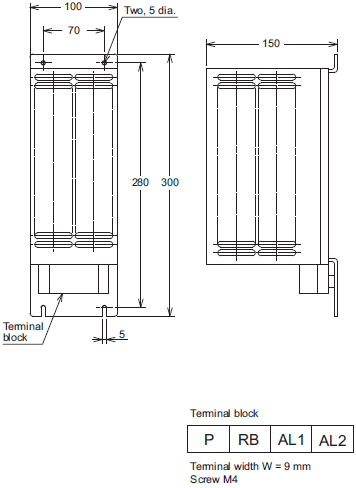

3G3AX-RBC4001
3G3AX-RBC6001
3G3AX-RBC12001

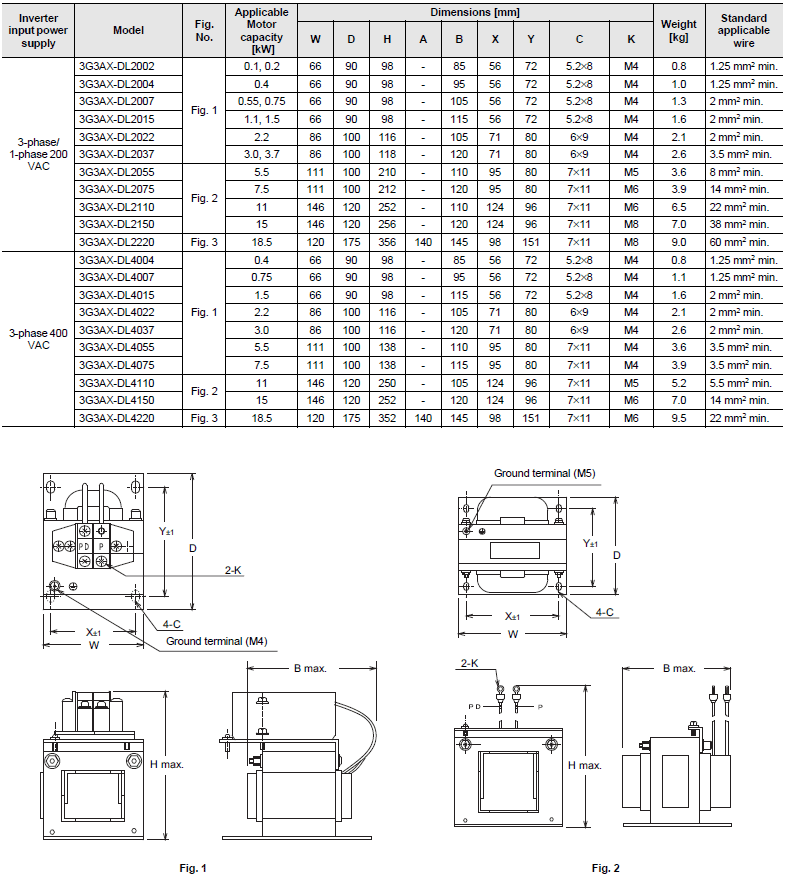

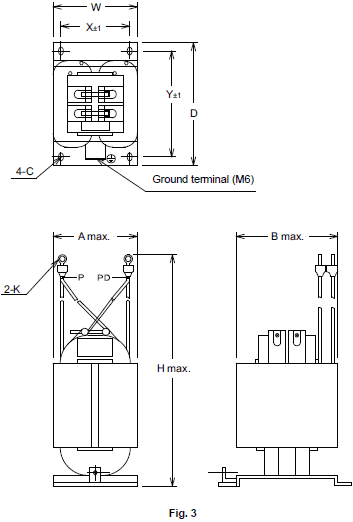

DC Reactor (3G3AX-DL[][][][])

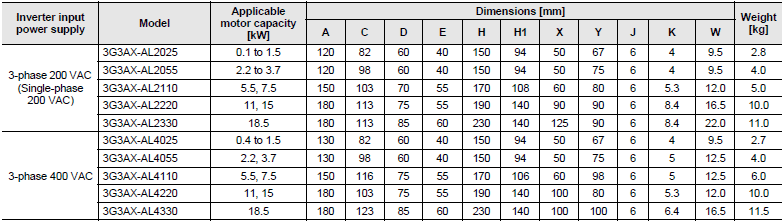

AC Reactor (3G3AX-AL[][][][])

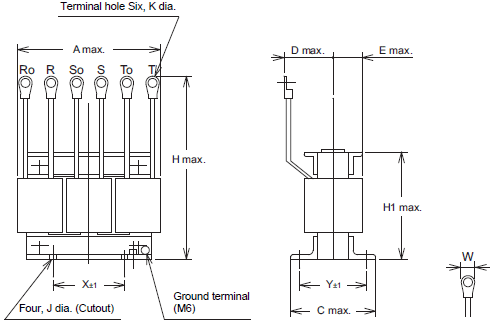

3G3AX-AL2025/AL2055/AL4025/AL4055/AL4110

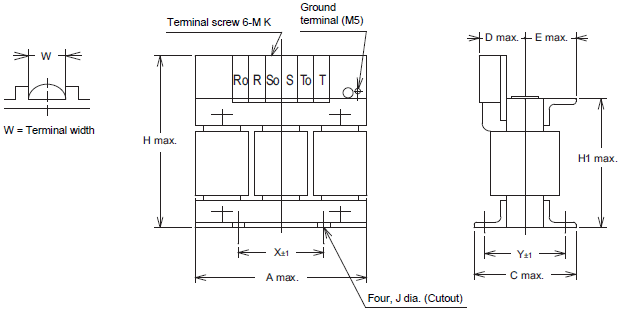

3G3AX-AL2110/AL2220/AL2330/AL4220/AL4330

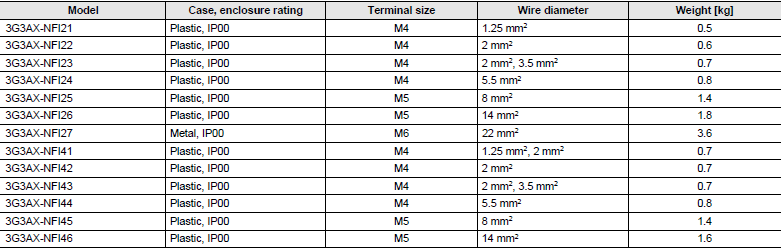

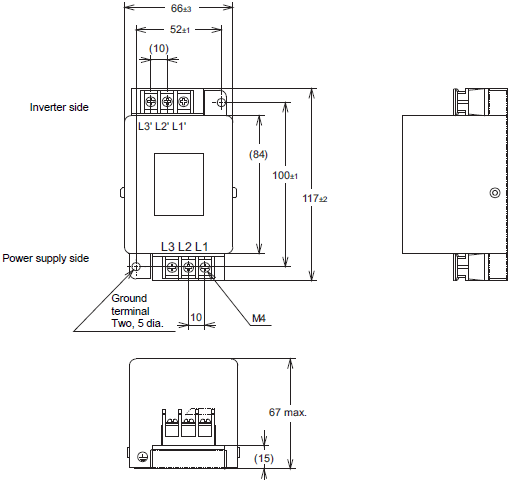

Input Noise Filter (3G3AX-NFI[][])

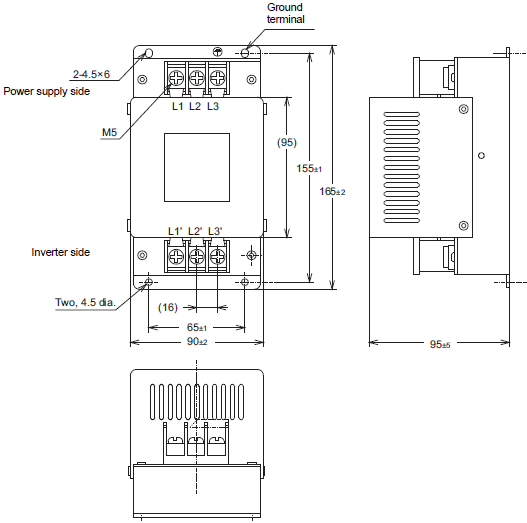

3G3AX-NFI21/NFI22

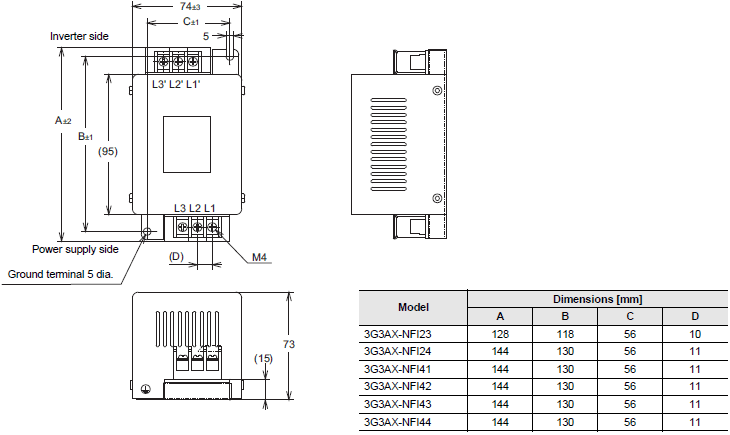

3G3AX-NFI23/NFI24/NFI41/NFI42/NFI43/NFI44
3G3AX-NFI25/NFI26/NFI45/NFI46

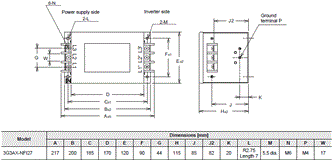

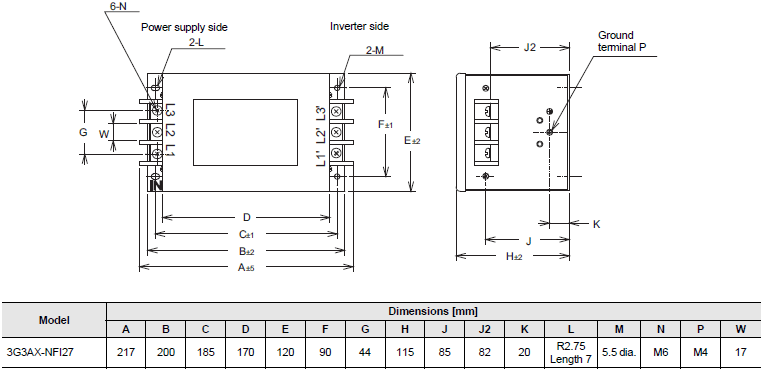

3G3AX-NFI27
Output Noise Filter (3G3AX-NFO[][])

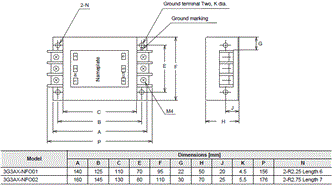

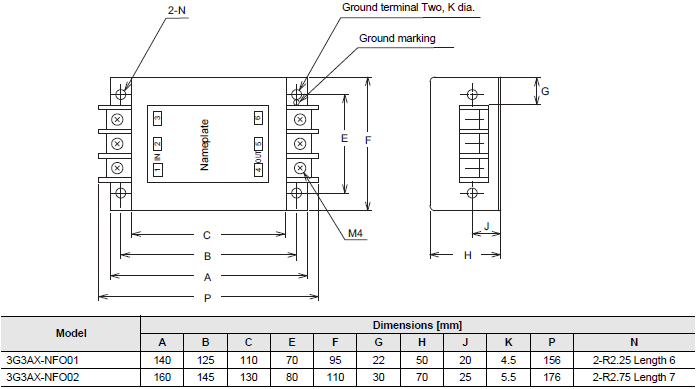

3G3AX-NFO01/NFO02

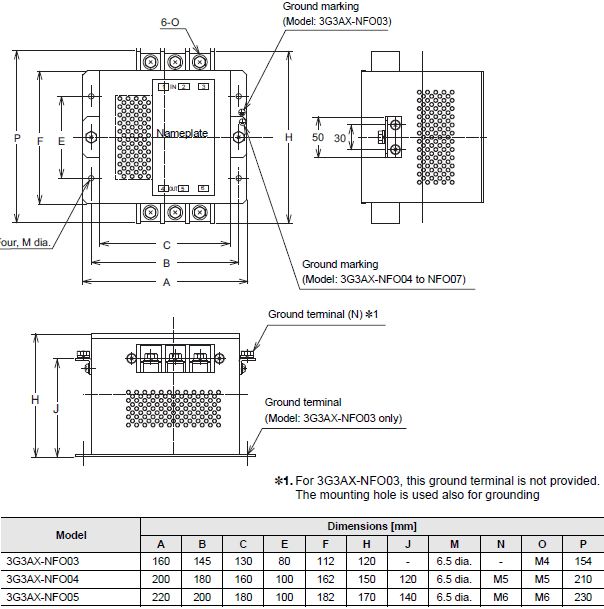

3G3AX-NFO03/NFO04/NFO05

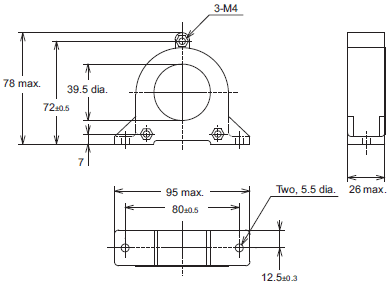

Radio Noise Filter (3G3AX-ZCL[])
3G3AX-ZCL1
3G3AX-ZCL2

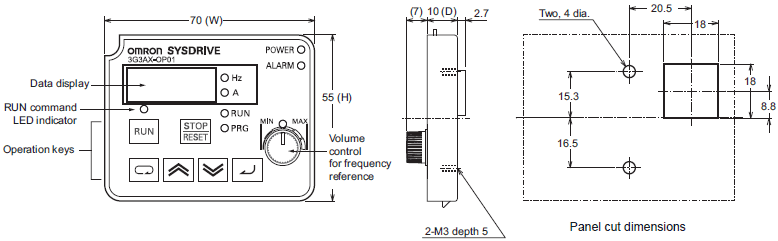

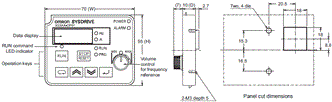

Digital Operator (3G3AX-OP01)
3G3AX-OP01

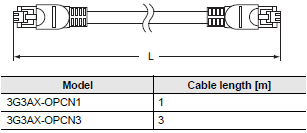

Digital Operator Cable (3G3AX-OPCN[])
