S8JX-P
Switch Mode Power Supply (300/600-W Models)
S8JX-P Series with EMI ClassB and Power Factor Correction is newly added to S8JX Series.
Related Contents
Application Solutions
last update: April 1, 2019
(Unit: mm)
Front-mounting Models

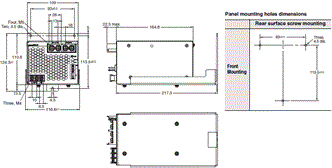

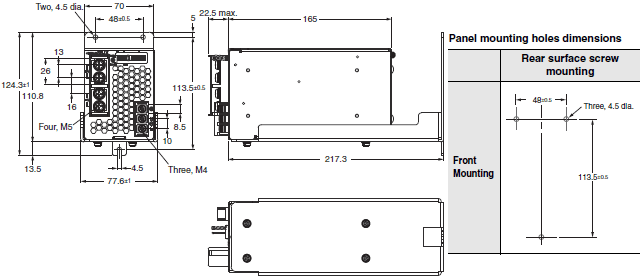

S8JX-P300[][]C (300 W)

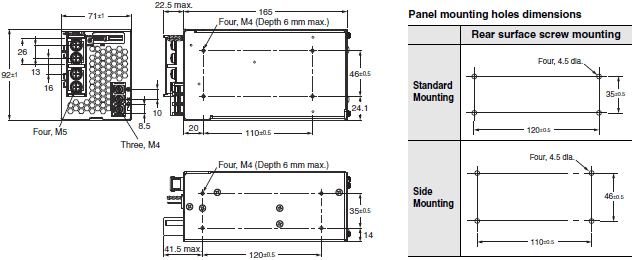

S8JX-P300[][]N (300 W)

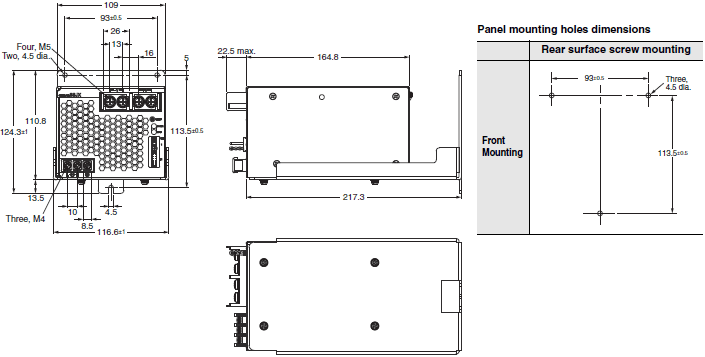

S8JX-P600[][]C (600 W)

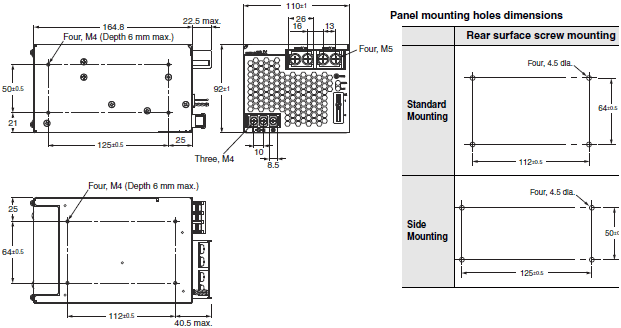

S8JX-P600[][]N (600 W)
DIN Rail-mounting Models

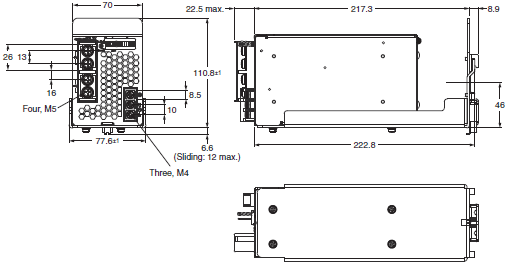

S8JX-P300[][]CD (300 W)
Note: Use a metal DIN Rail when mounting a 300-W model to a DIN Rail.

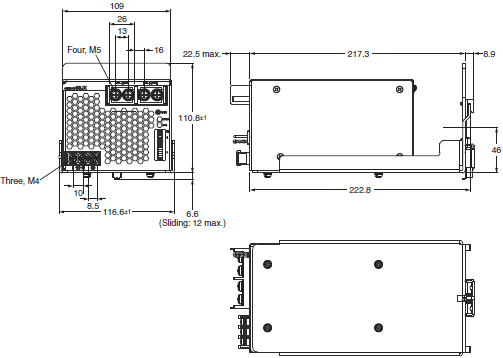

S8JX-P600[][]CD (600 W)
Note: Use a metal DIN Rail when mounting a 600-W model to a DIN Rail.
DIN Rail (Order Separately)
End Plate
Note: 1. Use a metal DIN Rail when mounting the S8JX-P to a DIN Rail.
2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.
2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.
